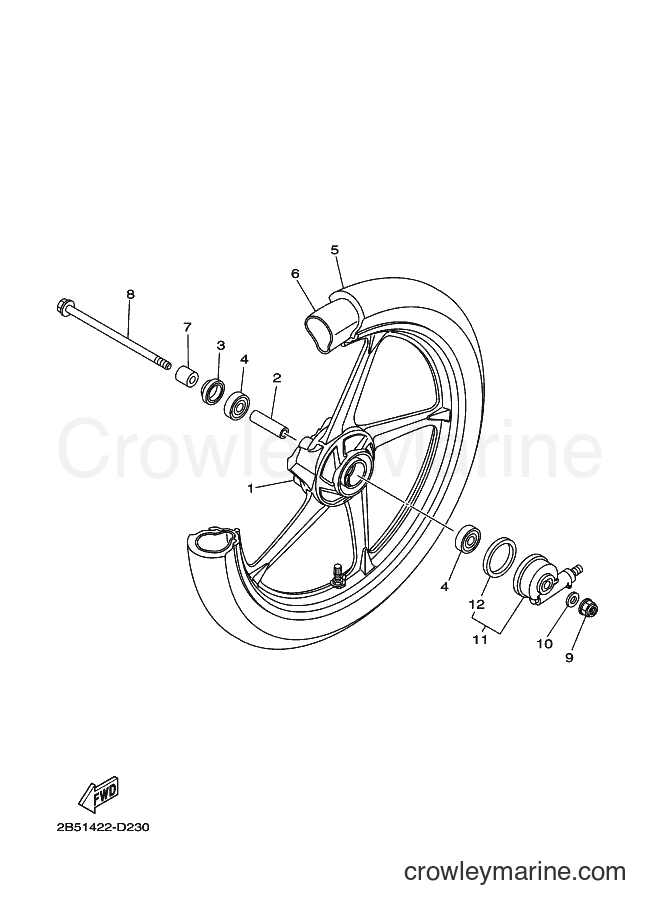

2008 Scooter AT115C - AT115C (22S2) [010] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT115C (22S2) [010] - FRONT WHEEL
Change View:
1
Required: 1
CAST WHEEL, FRONT
Price unavailable
2
Required: 1
SPACER
Price unavailable
Oil Seal
3
Yamaha Motors
Oil Seal93106-20808-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$1.80
$1.53
You save $0.27
More details
4
Required: 2
BEARING
Price unavailable
5
Required: 1
TIRE (70/80-16 M/C 36P NF59)
Price unavailable
6
Required: 1
TUBE (70/90-16 TR4)
Price unavailable
517 F. WHEEL COLLAR
7
Yamaha Motors
517 F. WHEEL COLLAR90387-10277-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
8
Required: 1
AXLE, WHEEL
Price unavailable
9
Required: 1
NUT, SELF-LOCKING
Price unavailable
Plain Washer
10
Yamaha Motors
Plain Washer90201-101J1-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
11
Required: 1
GEAR UNIT ASSY
Price unavailable
Oil Seal
12
Yamaha Motors
Oil Seal93106-40001-00
Required: 1
. OIL SEAL
Supersedes: 93106-40012-00
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
