All diagrams for this model

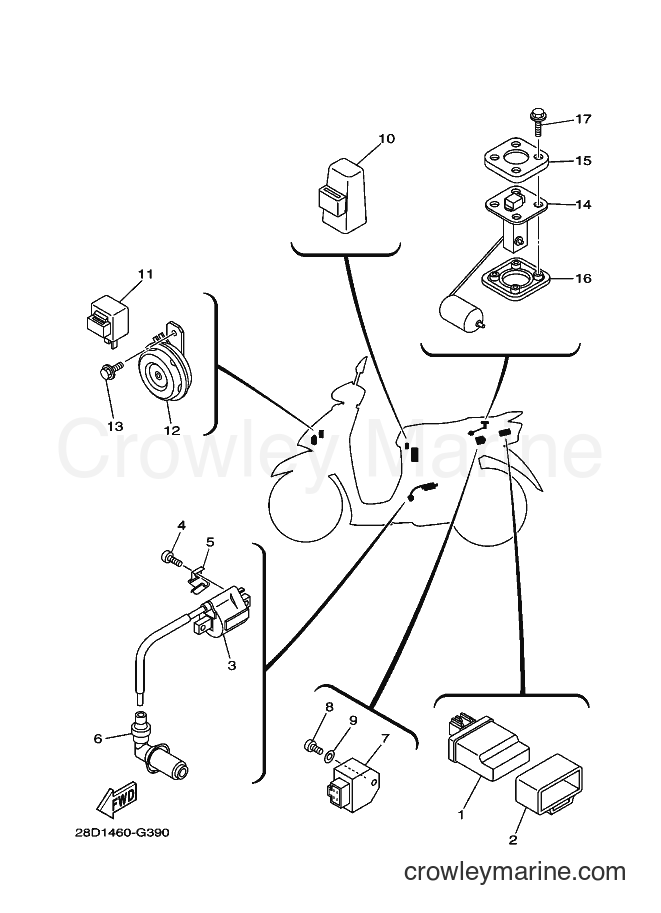

2008 Scooter AL115C - AL115C (28D2) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL115C (28D2) [010] - ELECTRICAL 2
Change View:
1
Required: 1
C.D.I. UNIT ASSY
Price unavailable
2
Required: 1
BAND
Price unavailable
3
Required: 1
IGNITION COIL ASSY
Price unavailable
PANHEAD SCREW (3GW)
4
Yamaha Motors
PANHEAD SCREW (3GW)98507-06018-00
Required: 2
SCREW,PAN HEAD
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
5
Required: 1
CLAMP
Price unavailable
6
Required: 1
PLUG CAP ASSY
Price unavailable
7
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
Pan Head Screw
8
Yamaha Motors
Pan Head Screw98507-06016-00
Required: 1
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.48
$2.96
You save $0.52
More details
10
Required: 1
STARTER RELAY ASSY
Price unavailable
11
Required: 1
FLASHER RELAY ASSY
Price unavailable
12
Required: 1
HORN
Price unavailable
14
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
15
Required: 1
RETAINER
Price unavailable
16
Required: 1
GASKET, SENDER UNIT
Price unavailable
Bolt with Washer
17
Yamaha Motors
Bolt with Washer90119-05071-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
