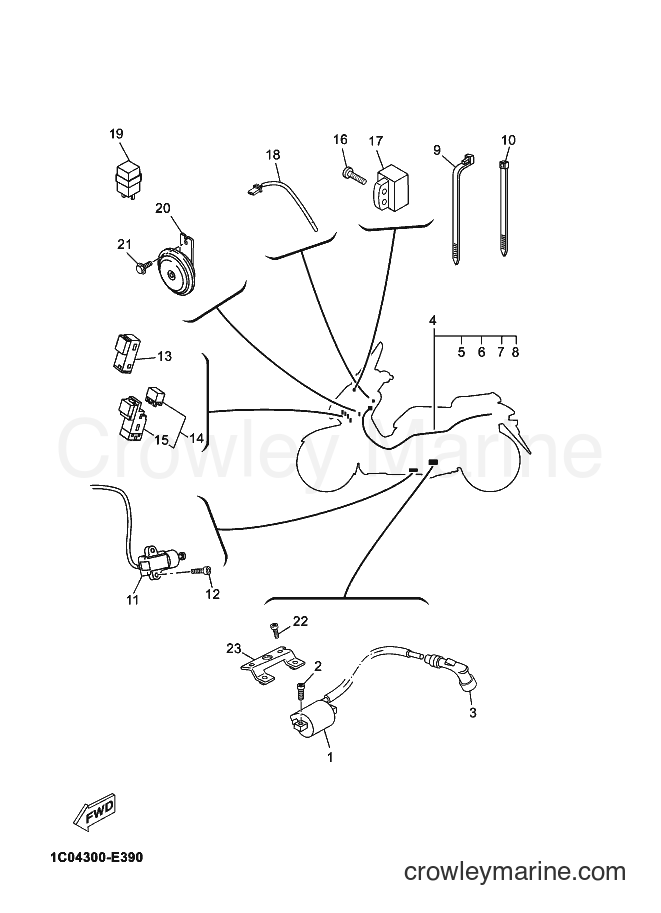

2007 Scooter YP250R - YP250R (1C04) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP250R (1C04) [010] - ELECTRICAL 2
Change View:
1
Required: 1
IGNITION COIL ASSY
Price unavailable
3
Required: 1
PLUG CAP ASSY
Price unavailable
4
Required: 1
WIRE HARNESS ASSY
Price unavailable
Diode Assembly
5
Yamaha Motors
Diode Assembly4WA-81980-00-00
Required: 1
. DIODE ASSY
Cross Ship
Leaves in 2-5 days
$32.99
$28.04
You save $4.95
More details
6
Required: 3
. FUSE (15A)
Price unavailable
7
Required: 4
. FUSE (5A)
Price unavailable
8
Required: 2
. FUSE (10A)
Price unavailable
9
Required: 5
CLAMP
Price unavailable
10
Required: 3
CLAMP
Price unavailable
Side Stand Switch
11
Yamaha Motors
Side Stand Switch3LD-82566-50-00
Required: 1
SWITCH, SIDE STAND
Cross Ship
Leaves in 2-5 days
$64.99
$55.24
You save $9.75
More details
12
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
Starter Relay
13
Yamaha Motors
Starter Relay4HC-81950-00-00
Required: 1
RELAY ASSY
Cross Ship
Leaves in 2-5 days
$49.99
$42.49
You save $7.50
More details
Starter Relay
14
Yamaha Motors
Starter Relay5EA-81950-20-00
Required: 2
RELAY ASSY
Cross Ship
Leaves in 2-5 days
$62.99
$53.54
You save $9.45
More details
RELAY HOLDER
15
Yamaha Motors
RELAY HOLDER5EA-81952-00-00
Required: 1
. HOLDER, RELAY
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
SENSOR, LEAN ANGLE
16
Yamaha Motors
SENSOR, LEAN ANGLE5VU-82576-02-00
Required: 1
LEAN ANGLE SENSOR
Supersedes: 5VU-82576-01-00
Cross Ship
Leaves in 2-5 days
$121.99
$103.69
You save $18.30
More details
17
Required: 2
BOLT
Price unavailable
18
Required: 1
SENSOR, EXT, TEMP.
Price unavailable
19
Required: 1
FLASHER RELAY ASSY
Price unavailable
20
Required: 1
HORN
Price unavailable
Flange Bolt
21
Yamaha Motors
Flange Bolt9582M-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 9580M-06012-00
Cross Ship
Leaves in 2-5 days
$0.75
$0.64
You save $0.11
More details
22
Required: 1
STAY, IGNITION COIL
Price unavailable
23
Required: 2
BOLT, WITH WASHER
Price unavailable
