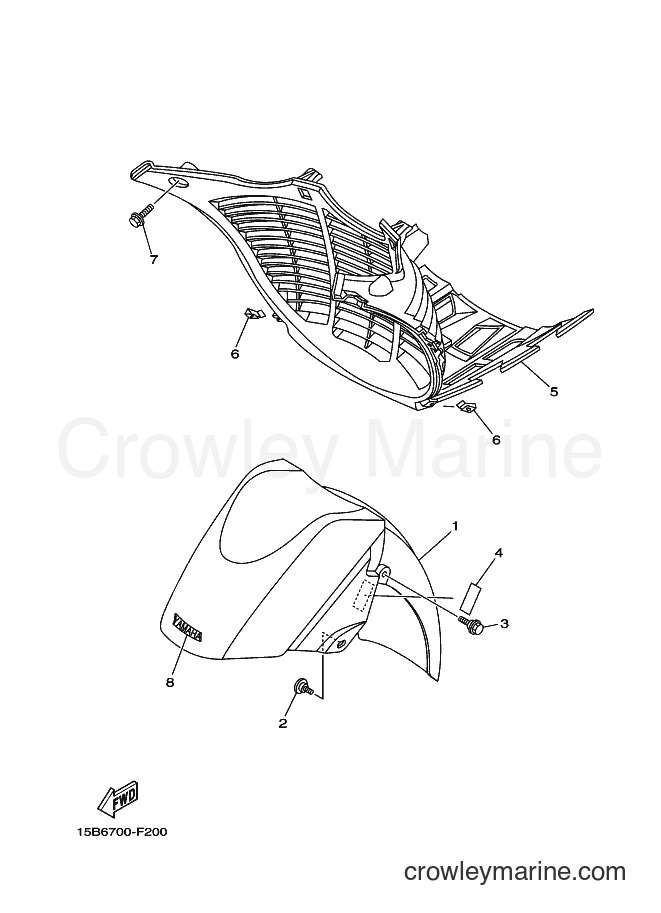

2007 Scooter XP500 - XP500 (15B4) [050] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Yamaha Motors XP500 (15B4) [050] - FENDER

Change View:

Required: 1

FENDER, FRONT

Price unavailable

Yamaha Motors

Binding Screw90154-06014-00

Required: 2

SCREW, BINDING

~~$9.49~~

$8.07

You save $1.42

BOLT

~~$9.49~~

$8.07

You save $1.42

More details

Yamaha Motors

Shift Bracket Seal1JK-21268-00-00

Required: 2

SEAL

~~$7.49~~

$6.37

You save $1.12

More details

Required: 1

FENDER, INNER 2

Price unavailable

Yamaha Motors

Spring Nut90183-05042-00

Required: 8

NUT, SPRING

In stock

Only 1 remaining

~~$1.00~~

$0.85

You save $0.15

More details

Yamaha Motors

Flange Bolt95817-06016-00

Required: 2

BOLT, FLANGE

Supersedes: 95802-06016-00

~~$1.95~~

$1.66

You save $0.29

More details

Required: 1

EMBLEM, YAMAHA

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
