2007 Scooter XF50 - XF50 (15P2) [010] HEADLIGHT diagram
1
Required: 1
HEADLIGHT ASSY
Price unavailable
2
Required: 1
. HEADLIGHT UNIT ASSY
Price unavailable
3
Required: 1
. . HEADLIGHT UNIT ASSY
Price unavailable

4
Yamaha Motors
Headlight Bulb5ST-H4314-10-00
Required: 1
. . BULB, HEADLIGHT (12V-35/35W)
Supersedes: 5ST-H4314-00-00
$28.04
You save $4.95

5
Yamaha Motors
SOCKET COVER5PJ-H4397-10-00
Required: 1
. . COVER, SOCKET
Supersedes: 5PJ-H4397-00-00
$4.00
You save $0.71
$4.67
You save $0.82

7
Yamaha Motors
Rim Fitting Screw5PJ-H4325-00-00
Required: 2
. . SCREW, RIM FITTING
$1.66
You save $0.29

8
Yamaha Motors
Plain Washer5YR-H4344-10-00
Required: 2
. . WASHER, PLAIN
$0.42
You save $0.08

9
Yamaha Motors
RIM FITTING SCREW3B3-H4325-00-00
Required: 2
. . SCREW, RIM FITTING
$0.30
You save $0.05

10
Yamaha Motors
Special Washer3B3-H4327-00-00
Required: 2
. . WASHER, SPECIAL
$0.30
You save $0.05

11
Yamaha Motors
Plain Washer3B3-H4344-00-00
Required: 2
. . WASHER, PLAIN
$0.26
You save $0.05

12
Yamaha Motors
Adjusting Nut3B3-H4334-00-00
Required: 2
. . NUT, ADJUSTING
$0.98
You save $0.17

13
Yamaha Motors
SCREW SPRING3B3-H4332-00-00
Required: 2
. . SPRING, SCREW
$0.68
You save $0.12

14
Yamaha Motors
Adjusting Rim Screw3B3-H4331-00-00
Required: 2
. . SCREW, RIM ADJUSTING
$2.00
You save $0.35

15
Yamaha Motors
HEADLIGHT RIM3B3-H4315-00-00
Required: 1
. . RIM, HEADLIGHT
$32.29
You save $5.70
$14.02
You save $2.47
$0.47
You save $0.08

18
Yamaha Motors
Body Fitting Collar5AG-H4338-00-00
Required: 2
. COLLAR, BODY FITTING
$3.02
You save $0.53

19
Yamaha Motors
Pan Head Screw90157-06064-00
Required: 2
. SCREW, PAN HEAD
$0.38
You save $0.07
$1.49
You save $0.26

21
Yamaha Motors
Headlight Stay3B3-F3174-01-00
Required: 1
STAY, HEADLIGHT
Supersedes: 3B3-F3174-00-00
$81.59
You save $14.40
$2.59
You save $0.46
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

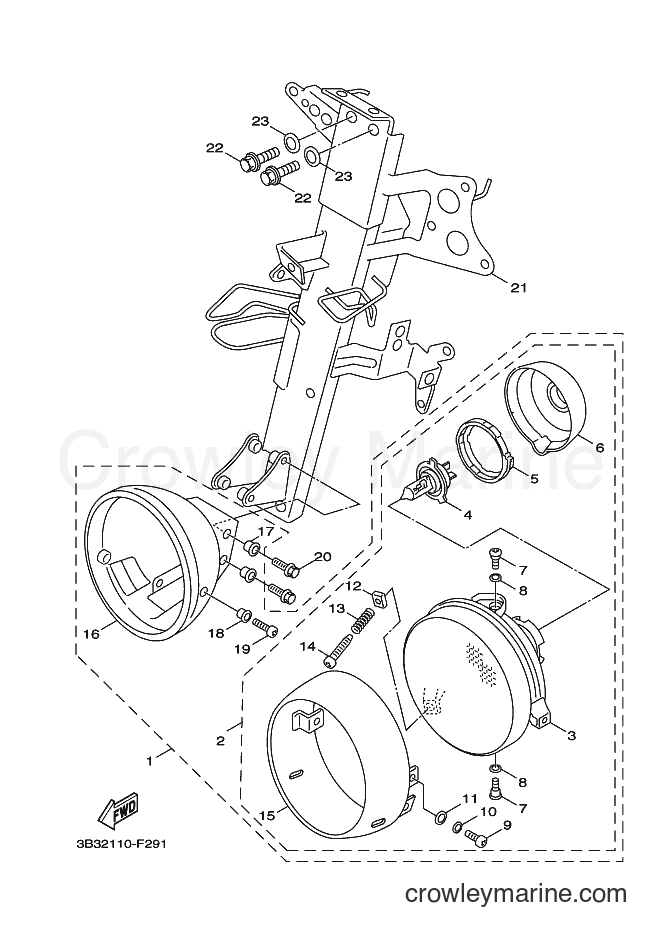

![Yamaha Motors XF50 (15P2) [010] - HEADLIGHT](https://cdn.crowleymarine.com/yamaha/3OQLIAHB.png)
