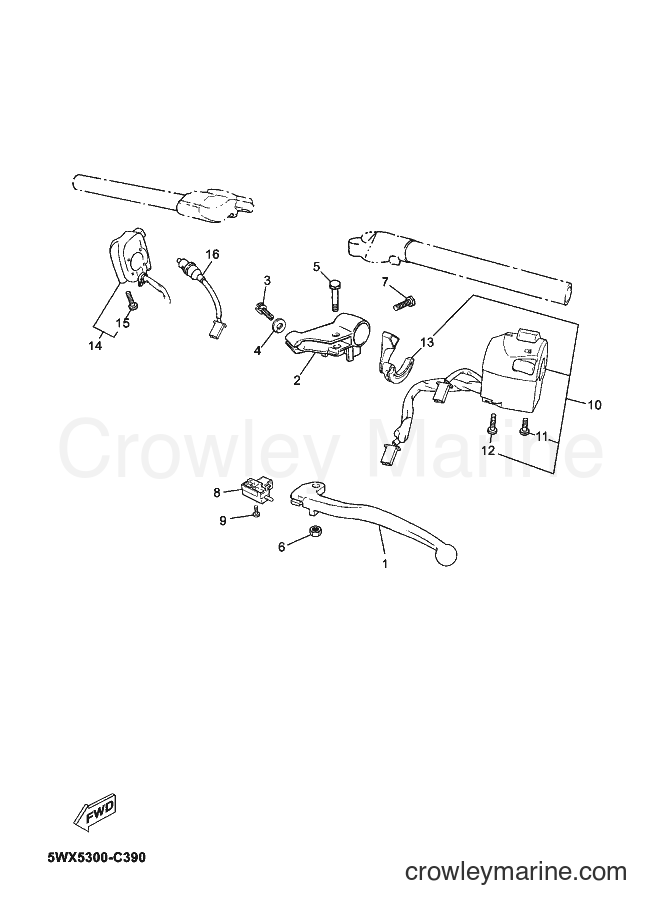

2007 Scooter TZR50 - TZR50 (5WXP) [010] HANDLE SWITCH & LEVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TZR50 (5WXP) [010] - HANDLE SWITCH & LEVER
Change View:
1
Required: 1
LEVER 1
Price unavailable
2
Required: 1
HOLDER, LEVER 1
Price unavailable
3
Required: 1
BOLT
Price unavailable
4
Required: 1
NUT
Price unavailable
5
Required: 1
BOLT, LEVER
Price unavailable
6
Required: 1
NUT, SELF-LOCKING
Price unavailable
Bolt (3JB)
7
Yamaha Motors
Bolt (3JB)91314-06020-00
Required: 1
BOLT
Supersedes: 9131M-06020-00
Cross Ship
Leaves in 2-5 days
$2.65
$2.25
You save $0.40
More details
Switch
8
Yamaha Motors
Switch3YX-82917-01-00
Required: 1
SWITCH
Cross Ship
Leaves in 2-5 days
$47.99
$40.79
You save $7.20
More details
FLAT HEAD SCREW (4BP)
9
Yamaha Motors
FLAT HEAD SCREW (4BP)98707-03020-00
Required: 1
SCREW, FLAT HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
10
Required: 1
SWITCH, HANDLE 4
Price unavailable
11
Required: 1
. SCREW, SWITCH FITTING 1
Price unavailable
12
Required: 1
. SCREW, SWITCH FITTING 2
Price unavailable
13
Required: 1
. LEVER, STARTER
Price unavailable
14
Required: 1
SWITCH, HANDLE 3
Price unavailable
15
Required: 2
. SCREW, SWITCH FITTING 1
Price unavailable
16
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
