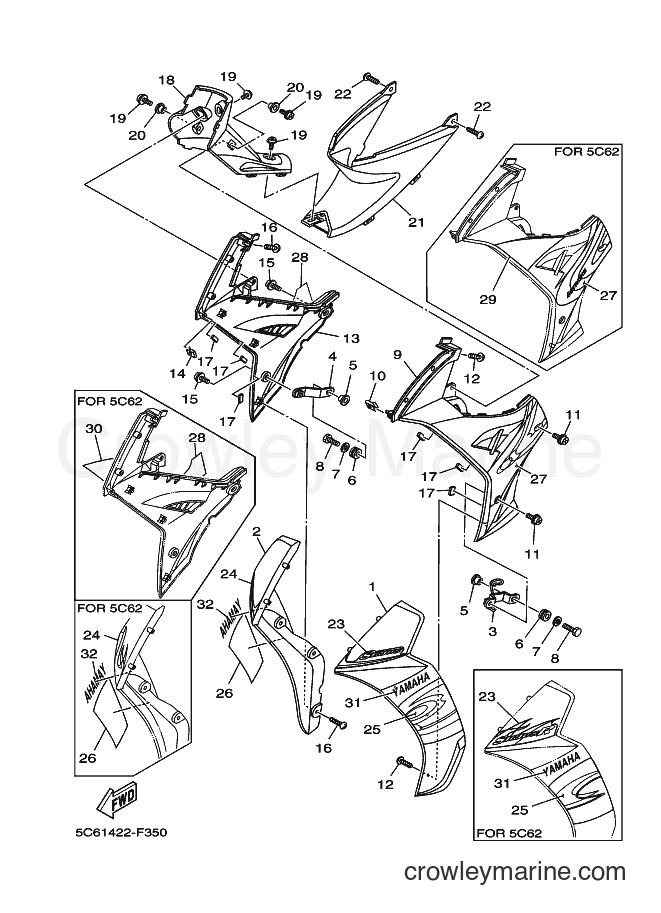

2007 Scooter T110LE - T110LE (5C61) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110LE (5C61) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
2
Required: 1
LEG SHIELD 2
Price unavailable
3
Required: 1
STAY 1
Price unavailable
4
Required: 1
STAY 2
Price unavailable
5
Required: 2
COLLAR
Price unavailable
Grommet
6
Yamaha Motors
Grommet90480-13018-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plate Washer
7
Yamaha Motors
Plate Washer90201-06557-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
Hexagon Bolt
8
Yamaha Motors
Hexagon Bolt97017-06020-00
Required: 2
BOLT
Supersedes: 97007-06020-00
Cross Ship
Leaves in 2-5 days
$4.06
$3.45
You save $0.61
More details
9
Required: 1
COVER, LOWER
Price unavailable
9
Required: 1
COVER, LOWER
Price unavailable
10
Required: 1
NUT, SPRING
Price unavailable
11
Required: 2
SCREW, WITH WASHER
Price unavailable
Truss Screw
12
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
13
Required: 1
COVER, UNDER
Price unavailable
13
Required: 1
COVER, UNDER
Price unavailable
14
Required: 1
NUT, SPRING
Price unavailable
15
Required: 2
SCREW, WITH WASHER
Price unavailable
Truss Screw
16
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
17
Required: 6
DAMPER
Price unavailable
18
Required: 1
COVER 1
Price unavailable
19
Required: 4
SCREW, WITH WASHER
Price unavailable
20
Required: 2
COLLAR
Price unavailable
21
Required: 1
COVER 2
Price unavailable
23
Required: 1
GRAPHIC 1
Price unavailable
23
Required: 1
GRAPHIC 7
Price unavailable
24
Required: 1
GRAPHIC 8
Price unavailable
24
Required: 1
GRAPHIC 2
Price unavailable
25
Required: 1
GRAPHIC 9
Price unavailable
25
Required: 1
GRAPHIC 3
Price unavailable
26
Required: 1
GRAPHIC 10
Price unavailable
26
Required: 1
GRAPHIC 4
Price unavailable
27
Required: 1
GRAPHIC 11
Price unavailable
27
Required: 1
GRAPHIC 5
Price unavailable
28
Required: 1
GRAPHIC 6
Price unavailable
28
Required: 1
GRAPHIC 12
Price unavailable
29
Required: 1
GRAPHIC 13
Price unavailable
30
Required: 1
GRAPHIC 14
Price unavailable
YAMAHA EMBLEM
31
Yamaha Motors
YAMAHA EMBLEM99241-00100-00
Required: 1
EMBLEM, YAMAHA
Supersedes: 99231-00100-00
Cross Ship
Leaves in 2-5 days
$4.50
$3.82
You save $0.68
More details
YAMAHA EMBLEM
32
Yamaha Motors
YAMAHA EMBLEM99241-00100-00
Required: 1
EMBLEM, YAMAHA
Supersedes: 99231-00100-00
Cross Ship
Leaves in 2-5 days
$4.50
$3.82
You save $0.68
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
