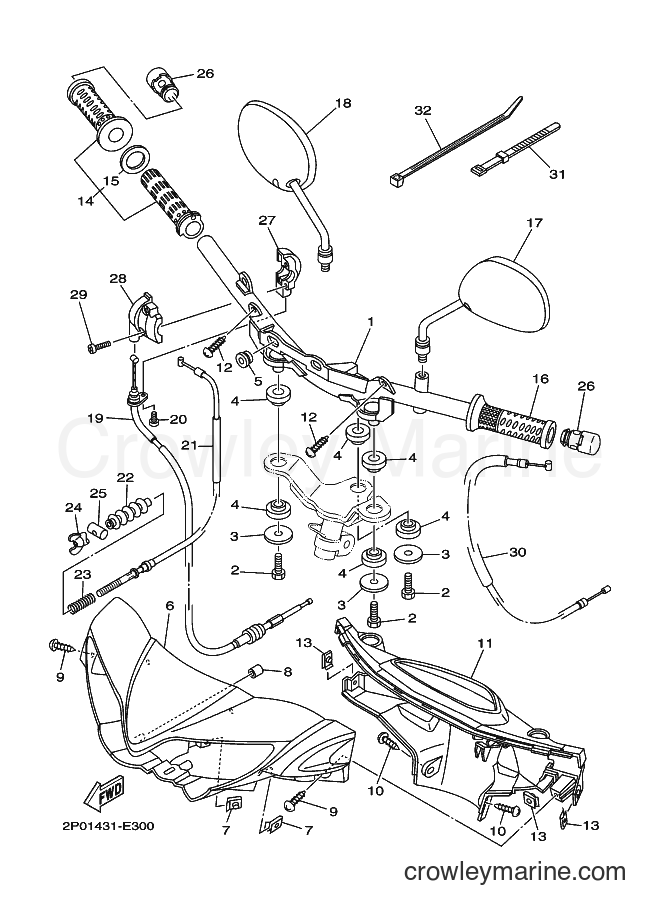

2007 Scooter LF-110C - LF-110C (2P12) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors LF-110C (2P12) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE
Price unavailable
1
Required: 1
HANDLE
Price unavailable
Bolt
2
Yamaha Motors
Bolt97017-08016-00
Required: 3
BOLT
Supersedes: 97007-08016-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plate Washer
3
Yamaha Motors
Plate Washer90201-08612-00
Required: 3
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
4
Required: 6
DAMPER
Price unavailable
Grommet
5
Yamaha Motors
Grommet90480-01558-00
Required: 2
GROMMET
Supersedes: 90480-01868-00
Cross Ship
Leaves in 2-5 days
$4.65
$3.95
You save $0.70
More details
6
Required: 1
COVER, HANDLEBAR UPPER 1
Price unavailable
8
Required: 1
DAMPER, LOCATING 1
Price unavailable
Truss Screw
9
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
Truss Screw
10
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
11
Required: 1
COVER, HANDLEBAR UPPER 2
Price unavailable
Truss Screw
12
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
14
Required: 1
GRIP ASSY
Price unavailable
15
Required: 1
. RING, LEAF
Price unavailable
16
Required: 1
GRIP
Price unavailable
17
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
18
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
19
Required: 1
CABLE, THROTTLE 1
Price unavailable
21
Required: 1
CABLE, BRAKE
Price unavailable
22
Required: 1
BOOT, CABLE
Price unavailable
Compression Spring
23
Yamaha Motors
Compression Spring90501-10073-00
Required: 1
SPRING, COMPRESSION
Cross Ship
Leaves in 2-5 days
$3.75
$3.19
You save $0.56
More details
26
Required: 2
END, GRIP
Price unavailable
27
Required: 1
CAP, GRIP UPPER
Price unavailable
28
Required: 1
CAP, GRIP LOWER
Price unavailable
Pan Head Screw
29
Yamaha Motors
Pan Head Screw98507-05025-00
Required: 2
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
30
Required: 1
CABLE, STARTER 1
Price unavailable
31
Required: 2
BAND, SWITCH CORD
Price unavailable
32
Required: 1
CLAMP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
