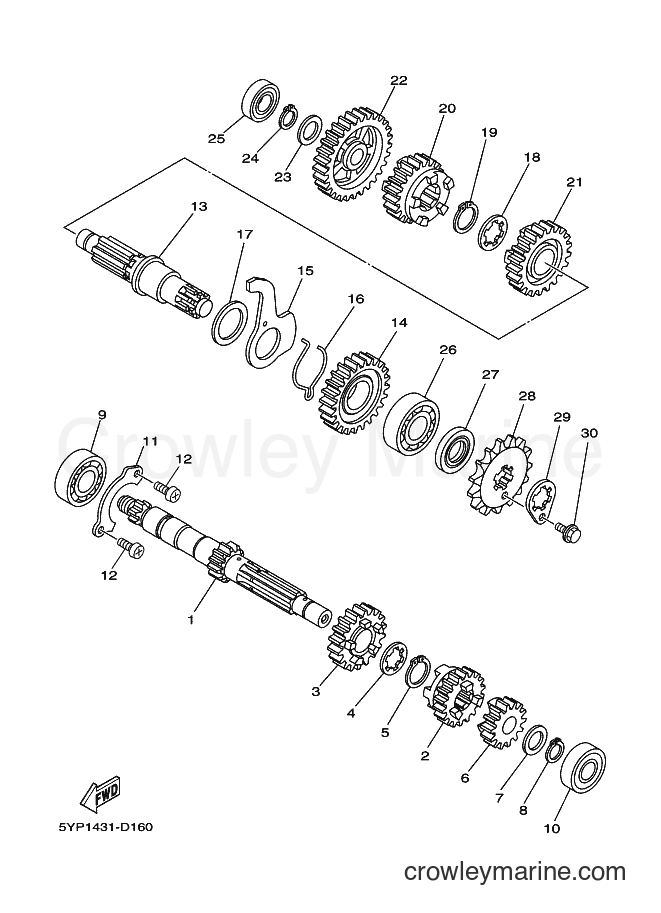

2007 Scooter LB-135D - LB-135D (2S44) [010] TRANSMISSION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors LB-135D (2S44) [010] - TRANSMISSION
Change View:
1
Required: 1
AXLE, MAIN (12T)
Price unavailable
1
Required: 1
AXLE, MAIN (12T)
Price unavailable
2
Required: 1
GEAR, 3RD PINION (17T)
Price unavailable
3
Required: 1
GEAR, 4TH PINION (22T)
Price unavailable
SPECIAL SHAPE NUT
4
Yamaha Motors
SPECIAL SHAPE NUT90209-17285-00
Required: 1
WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
S -type Circlip
5
Yamaha Motors
S -type Circlip93410-20038-00
Required: 1
CIRCLIP
Supersedes: 93410-20809-00
Cross Ship
Leaves in 2-5 days
$4.05
$3.44
You save $0.61
More details
6
Required: 1
GEAR, 2ND PINION (16T)
Price unavailable
Plain Washer
7
Yamaha Motors
Plain Washer90201-154E8-00
Required: 1
WASHER, PLATE
Supersedes: 90201-15700-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Circle Clip
8
Yamaha Motors
Circle Clip99009-15400-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
9
Required: 1
BEARING
Price unavailable
10
Required: 1
BEARING
Price unavailable
11
Required: 1
PLATE, COVER
Price unavailable
Screw
12
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$4.10
$3.49
You save $0.62
More details
13
Required: 1
AXLE, DRIVE
Price unavailable
14
Required: 1
GEAR, 2ND WHEEL (30T)
Price unavailable
15
Required: 1
PLATE, SIDE 1
Price unavailable
16
Required: 1
SPRING
Price unavailable
17
Required: 1
WASHER, PLATE
Price unavailable
SPECIAL SHAPE NUT
18
Yamaha Motors
SPECIAL SHAPE NUT90209-18208-00
Required: 1
WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
19
Required: 1
CIRCLIP
Price unavailable
20
Required: 1
GEAR, 4TH WHEEL (23T)
Price unavailable
21
Required: 1
GEAR, 3RD WHEEL (23T)
Price unavailable
22
Required: 1
GEAR, 1ST WHEEL (34T)
Price unavailable
Plain Washer
23
Yamaha Motors
Plain Washer90201-154E8-00
Required: 1
WASHER, PLATE
Supersedes: 90201-15700-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Circle Clip
24
Yamaha Motors
Circle Clip99009-15400-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
25
Required: 1
BEARING
Price unavailable
26
Required: 1
BEARING
Price unavailable
27
Required: 1
OIL SEAL
Price unavailable
28
Required: 1
SPROCKET, DRIVE (15T)
Price unavailable
29
Required: 1
HOLDER, SPROCKET
Price unavailable
Flange Bolt (4MY)
30
Yamaha Motors
Flange Bolt (4MY)95027-06010-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
