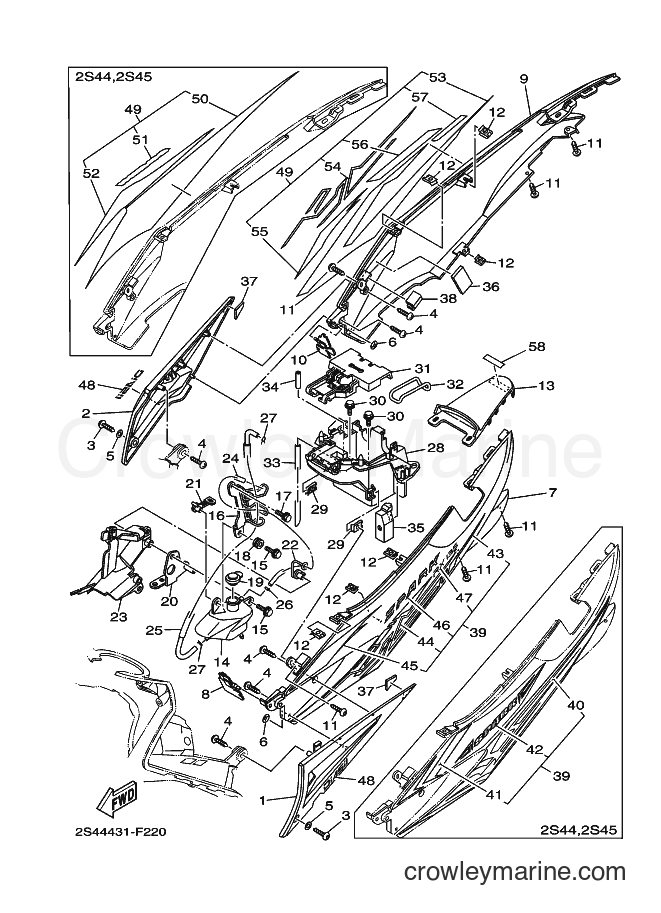

Yamaha Motors LB-135D-CW (2S45) [010] - SIDE COVER
Change View:
1
Required: 1
COVER, SIDE 1
Price unavailable
1
Required: 1
COVER, SIDE 1
Price unavailable
2
Required: 1
COVER, SIDE 2
Price unavailable
2
Required: 1
COVER, SIDE 2
Price unavailable
3
Required: 2
SCREW, ROUND TAPPING
Price unavailable
Truss Screw
4
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
Plate Washer
5
Yamaha Motors
Plate Washer90201-05725-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Spring Nut
6
Yamaha Motors
Spring Nut90183-04005-00
Required: 2
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$0.95
$0.81
You save $0.14
More details
7
Required: 1
COVER, SIDE 3
Price unavailable
8
Required: 1
FLAP
Price unavailable
9
Required: 1
COVER, SIDE 4
Price unavailable
10
Required: 1
FLAP
Price unavailable
11
Required: 6
SCREW, ROUND TAPPING
Price unavailable
13
Required: 1
COVER, SIDE 5
Price unavailable
14
Required: 1
TANK, RECOVERY
Price unavailable
Bolt with Washer
15
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
16
Required: 1
BRACKET 1
Price unavailable
Grommet
18
Yamaha Motors
Grommet90480-13018-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
19
Required: 1
CAP
Price unavailable
21
Required: 1
BRACKET 3
Price unavailable
22
Required: 1
BOSS, WIRE HOLDER
Price unavailable
23
Required: 1
COVER
Price unavailable
Hose
24
Yamaha Motors
Hose90445-09823-00
Required: 1
HOSE
Cross Ship
Leaves in 2-5 days
$15.49
$13.17
You save $2.32
More details
25
Required: 1
PIPE 2
Price unavailable
Scissor Clip
26
Yamaha Motors
Scissor Clip90467-08003-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
Clip
27
Yamaha Motors
Clip90467-090A2-00
Required: 2
CLIP
Supersedes: 90467-09006-00
Cross Ship
Leaves in 2-5 days
$4.75
$4.04
You save $0.71
More details
28
Required: 1
BOX, BATTERY
Price unavailable
Bolt with Washer
30
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
31
Required: 1
COVER, BATTERY
Price unavailable
BATTERY BAND
32
Yamaha Motors
BATTERY BAND5VV-H2131-00-00
Required: 1
BAND, BATTERY
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
33
Required: 1
HOSE (L550)
Price unavailable
34
Required: 1
HOSE (L40)
Price unavailable
35
Required: 1
COVER 1
Price unavailable
36
Required: 1
DAMPER
Price unavailable
37
Required: 2
DAMPER
Price unavailable
38
Required: 1
DAMPER
Price unavailable
39
Required: 1
GRAPHIC SET, SIDE COVER 3
Price unavailable
39
Required: 1
GRAPHIC SET, SIDE COVER 3
Price unavailable
39
Required: 1
GRAPHIC SET, SIDE COVER 3
Price unavailable
39
Required: 1
GRAPHIC SET, SIDE COVER 3
Price unavailable
40
Required: 1
. GRAPHIC 1
Price unavailable
40
Required: 1
. GRAPHIC 1
Price unavailable
41
Required: 1
. GRAPHIC 3
Price unavailable
41
Required: 1
. GRAPHIC 3
Price unavailable
42
Required: 1
. EMBLEM 2
Price unavailable
42
Required: 1
. EMBLEM 2
Price unavailable
43
Required: 1
. GRAPHIC 5
Price unavailable
44
Required: 1
. GRAPHIC,7
Price unavailable
45
Required: 1
. GRAPHIC 9
Price unavailable
46
Required: 1
. EMBLEM
Price unavailable
47
Required: 1
. EMBLEM 1
Price unavailable
47
Required: 1
. EMBLEM 1
Price unavailable
47
Required: 1
. EMBLEM 1
Price unavailable
47
Required: 1
. EMBLEM 1
Price unavailable
48
Required: 2
EMBLEM 3
Price unavailable
48
Required: 2
EMBLEM 3
Price unavailable
49
Required: 1
GRAPHIC SET, SIDE COVER 4
Price unavailable
49
Required: 1
GRAPHIC SET, SIDE COVER 4
Price unavailable
49
Required: 1
GRAPHIC SET, SIDE COVER 4
Price unavailable
49
Required: 1
GRAPHIC SET, SIDE COVER 4
Price unavailable
49
Required: 1
GRAPHIC SET, SIDE COVER 4
Price unavailable
50
Required: 1
. GRAPHIC 2
Price unavailable
50
Required: 1
. GRAPHIC 2
Price unavailable
51
Required: 1
. EMBLEM 4
Price unavailable
51
Required: 1
. EMBLEM 4
Price unavailable
52
Required: 1
. GRAPHIC 4
Price unavailable
52
Required: 1
. GRAPHIC 4
Price unavailable
53
Required: 1
. GRAPHIC 6
Price unavailable
54
Required: 1
. GRAPHIC,8
Price unavailable
55
Required: 1
. GRAPHIC 10
Price unavailable
56
Required: 1
. EMBLEM
Price unavailable
56
Required: 1
. EMBLEM
Price unavailable
56
Required: 1
. EMBLEM
Price unavailable
56
Required: 1
EMBLEM
Price unavailable
57
Required: 1
. EMBLEM 1
Price unavailable
58
Required: 1
EMBLEM, YAMAHA
Price unavailable
58
Required: 1
EMBLEM, YAMAHA
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
