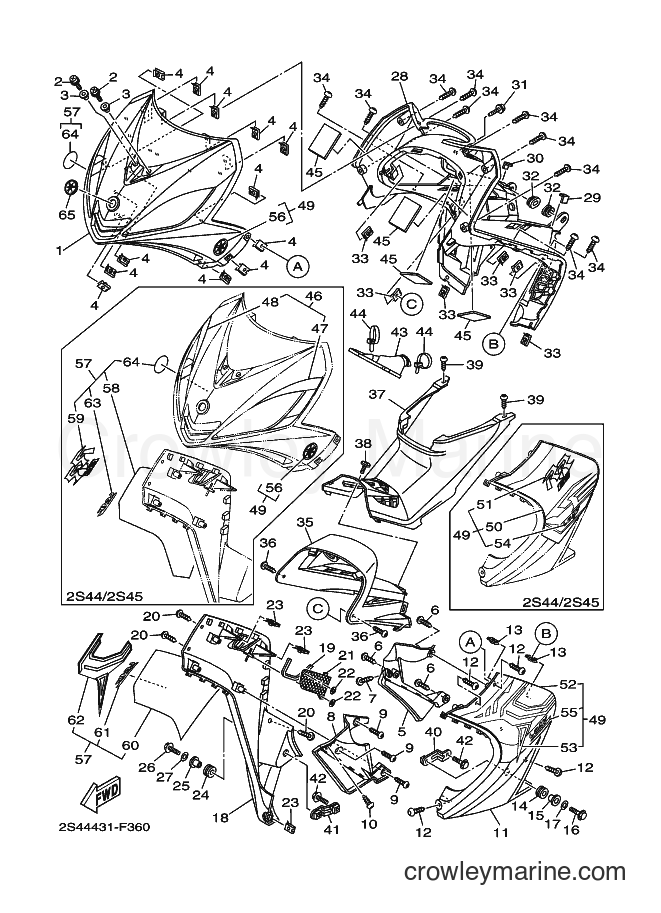

2007 Scooter LBA-135D - LBA-135D (5YP6) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors LBA-135D (5YP6) [010] - LEG SHIELD
Change View:
1
Required: 1
PANEL, FRONT
Price unavailable
1
Required: 1
PANEL, FRONT
Price unavailable
1
Required: 1
PANEL, FRONT
Price unavailable
2
Required: 2
SCREW, WITH WASHER
Price unavailable
3
Required: 2
COLLAR
Price unavailable
5
Required: 1
GUIDE, AIR 1
Price unavailable
7
Required: 1
SCREW, ROUND TAPPING
Price unavailable
8
Required: 1
GUIDE, AIR 2
Price unavailable
10
Required: 1
SCREW, ROUND TAPPING
Price unavailable
11
Required: 1
LEG SHIELD 1
Price unavailable
11
Required: 1
LEG SHIELD 1
Price unavailable
12
Required: 4
SCREW, ROUND TAPPING
Price unavailable
Grommet (3AK)
14
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
15
Required: 1
COLLAR
Price unavailable
Plate Washer
17
Yamaha Motors
Plate Washer90201-06557-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
18
Required: 1
LEG SHIELD 2
Price unavailable
18
Required: 1
LEG SHIELD 2
Price unavailable
19
Required: 1
DAMPER
Price unavailable
20
Required: 3
SCREW, ROUND TAPPING
Price unavailable
21
Required: 1
CAP
Price unavailable
Spring Nut
22
Yamaha Motors
Spring Nut90183-04005-00
Required: 2
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$0.95
$0.81
You save $0.14
More details
Grommet (3AK)
24
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
25
Required: 1
COLLAR
Price unavailable
Plate Washer
27
Yamaha Motors
Plate Washer90201-06557-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
28
Required: 1
PANEL, INNER 1
Price unavailable
28
Required: 1
PANEL, INNER 1
Price unavailable
29
Required: 1
SEAL 1
Price unavailable
30
Required: 1
SEAL 2
Price unavailable
31
Required: 1
SCREW, WITH WASHER
Price unavailable
Grommet
32
Yamaha Motors
Grommet90480-01558-00
Required: 2
GROMMET
Supersedes: 90480-01868-00
Cross Ship
Leaves in 2-5 days
$4.65
$3.95
You save $0.70
More details
34
Required: 10
SCREW, ROUND TAPPING
Price unavailable
35
Required: 1
COVER 1
Price unavailable
36
Required: 2
SCREW, ROUND TAPPING
Price unavailable
37
Required: 1
COVER 2
Price unavailable
ROUND HEAD SCREW
38
Yamaha Motors
ROUND HEAD SCREW90150-06021-00
Required: 1
SCREW, ROUND HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
39
Required: 2
SCREW, ROUND TAPPING
Price unavailable
40
Required: 1
STAY 1
Price unavailable
41
Required: 1
STAY 2
Price unavailable
43
Required: 1
PLATE
Price unavailable
Clamp
44
Yamaha Motors
Clamp90464-50800-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
45
Required: 4
DAMPER
Price unavailable
46
Required: 1
GRAPHIC SET PANEL FRONT
Price unavailable
46
Required: 1
GRAPHIC SET PANEL FRONT
Price unavailable
47
Required: 1
. GRAPHIC 7
Price unavailable
47
Required: 1
. GRAPHIC 7
Price unavailable
48
Required: 1
. GRAPHIC 8
Price unavailable
48
Required: 1
. GRAPHIC 8
Price unavailable
49
Required: 1
GRAPHIC SET, LEG SHIELD 1
Price unavailable
49
Required: 1
GRAPHIC SET, LEG SHIELD 1
Price unavailable
49
Required: 1
GRAPHIC SET, LEG SHIELD 1
Price unavailable
52
Required: 1
. GRAPHIC 3
Price unavailable
53
Required: 1
. GRAPHIC 5
Price unavailable
55
Required: 1
. EMBLEM
Price unavailable
56
Required: 1
. EMBLEM 1
Price unavailable
57
Required: 1
GRAPHIC SET, LEG SHIELD 2
Price unavailable
57
Required: 1
GRAPHIC SET, LEG SHIELD 2
Price unavailable
57
Required: 1
GRAPHIC SET, LEG SHIELD 2
Price unavailable
58
Required: 1
. GRAPHIC 10
Price unavailable
58
Required: 1
. GRAPHIC 10
Price unavailable
58
Required: 1
. GRAPHIC 10
Price unavailable
59
Required: 1
. GRAPHIC 12
Price unavailable
59
Required: 1
. GRAPHIC 12
Price unavailable
60
Required: 1
. GRAPHIC 4
Price unavailable
61
Required: 1
. EMBLEM
Price unavailable
61
Required: 1
. EMBLEM
Price unavailable
62
Required: 1
. GRAPHIC 6
Price unavailable
63
Required: 1
. EMBLEM
Price unavailable
63
Required: 1
. EMBLEM
Price unavailable
64
Required: 1
. EMBLEM 1
Price unavailable
65
Required: 1
EMBLEM
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
