All diagrams for this model

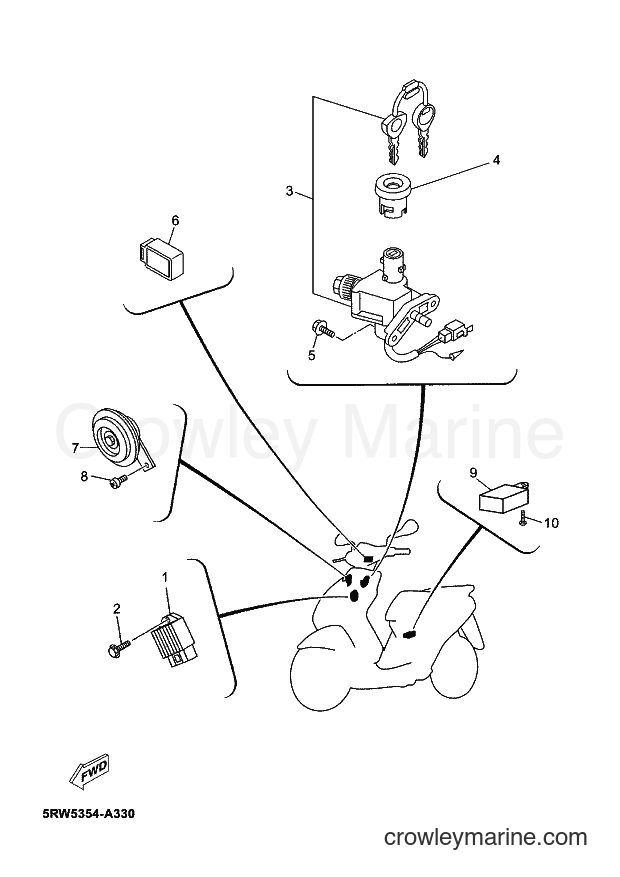

2007 Scooter CS50 - CS50 (3D4C) [060] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CS50 (3D4C) [060] - ELECTRICAL 1
Change View:
1
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
2
Required: 1
BOLT
Price unavailable
3
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
4
Required: 1
CAP, SWITCH
Price unavailable
5
Required: 2
BOLT,HEX. SOCKET BUTTON
Price unavailable
6
Required: 1
FLASHER RELAY ASSY
Price unavailable
7
Required: 1
HORN
Price unavailable
Bind Screw
8
Yamaha Motors
Bind Screw98907-06012-00
Required: 1
SCREW, BIND
Supersedes: 9890M-06012-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
9
Required: 1
UNIT, CONTROL
Price unavailable
10
Required: 1
SCREW, TAPPING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
