2007 Scooter CS50 - CS50 (3D4C) [040] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

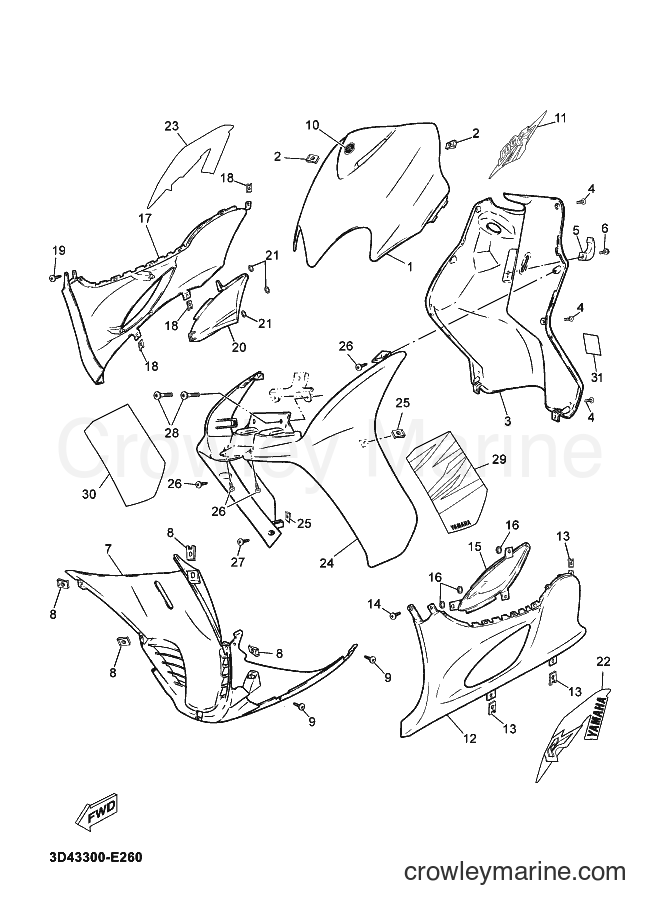

Yamaha Motors CS50 (3D4C) [040] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
2
Required: 2
NUT, EMBLEM
Price unavailable
3
Required: 1
LEG SHIELD 2
Price unavailable
4
Required: 6
SCREW, TAPPING
Price unavailable
5
Required: 1
HANGER, HELMET
Price unavailable
6
Required: 1
SCREW, WITH WASHER
Price unavailable
7
Required: 1
COVER, LOWER
Price unavailable
8
Required: 2
NUT, EMBLEM
Price unavailable
9
Required: 3
SCREW, TAPPING
Price unavailable
10
Required: 1
EMBLEM
Price unavailable
11
Required: 1
EMBLEM 2
Price unavailable
12
Required: 1
MOLE, SIDE COVER 1
Price unavailable
13
Required: 2
NUT, EMBLEM
Price unavailable
14
Required: 1
SCREW, TAPPING
Price unavailable
15
Required: 1
PANEL 1
Price unavailable
16
Required: 3
NUT, SPRING
Price unavailable
17
Required: 1
MOLE, SIDE COVER 2
Price unavailable
18
Required: 2
NUT, EMBLEM
Price unavailable
19
Required: 1
SCREW, TAPPING
Price unavailable
20
Required: 1
PANEL 2
Price unavailable
21
Required: 3
NUT, SPRING
Price unavailable
22
Required: 1
GRAPHIC 12
Price unavailable
23
Required: 1
GRAPHIC 13
Price unavailable
24
Required: 1
MOLE, FENDER
Price unavailable
25
Required: 4
NUT, EMBLEM
Price unavailable
26
Required: 6
SCREW, TAPPING
Price unavailable
27
Required: 2
SCREW, TAPPING
Price unavailable
Socket Bolt
28
Yamaha Motors
Socket Bolt98907-06016-00
Required: 2
SCREW, BIND
Supersedes: 9890M-06016-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
29
Required: 1
GRAPHIC, FRONT FENDER 1
Price unavailable
30
Required: 1
GRAPHIC, FRONT FENDER 2
Price unavailable
31
Required: 1
LABEL, CAUTION
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
