All diagrams for this model

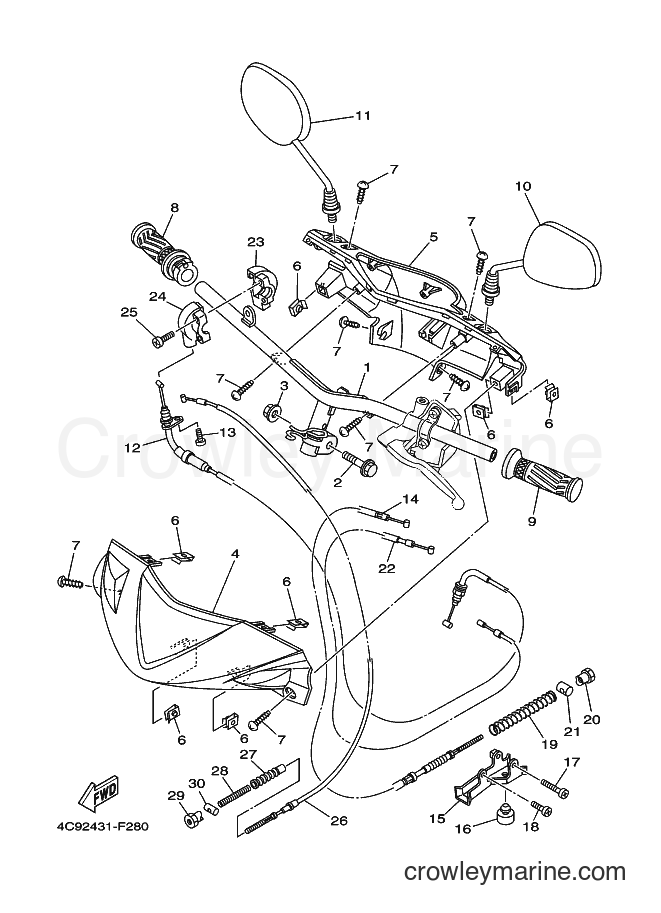

2007 Scooter BI-115D-CW - BI-115D-CW (4C93) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors BI-115D-CW (4C93) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE COMP.
Price unavailable
Washer Based Bolt
2
Yamaha Motors
Washer Based Bolt90105-10036-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Self-Locking Nut
3
Yamaha Motors
Self-Locking Nut90185-10154-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
4
Required: 1
COVER, HANDLEBAR UPPER 1
Price unavailable
4
Required: 1
COVER, HANDLEBAR UPPER 1
Price unavailable
5
Required: 1
COVER, HANDLEBAR UPPER 2
Price unavailable
8
Required: 1
GRIP ASSY
Price unavailable
9
Required: 1
GRIP
Price unavailable
10
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
11
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
12
Required: 1
CABLE, THROTTLE 1
Price unavailable
14
Required: 1
WIRE,BRAKE 2
Price unavailable
15
Required: 1
HOLDER, WIRE
Price unavailable
16
Required: 1
STOPPER
Price unavailable
Pan Screw
17
Yamaha Motors
Pan Screw98507-06040-00
Required: 1
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.22
$2.74
You save $0.48
More details
19
Required: 1
SPRING, COMPRESSION
Price unavailable
Special Shape Nut
20
Yamaha Motors
Special Shape Nut90179-06411-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
22
Required: 1
CABLE, STARTER 1
Price unavailable
23
Required: 1
CAP, GRIP UPPER
Price unavailable
24
Required: 1
CAP, GRIP LOWER
Price unavailable
Pan Head Screw
25
Yamaha Motors
Pan Head Screw98507-05025-00
Required: 2
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
26
Required: 1
WIRE, BRAKE 1
Price unavailable
27
Required: 1
BOOT, CABLE
Price unavailable
28
Required: 1
SPRING, COMPRESSION
Price unavailable
Special Shape Nut
29
Yamaha Motors
Special Shape Nut90179-06411-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
