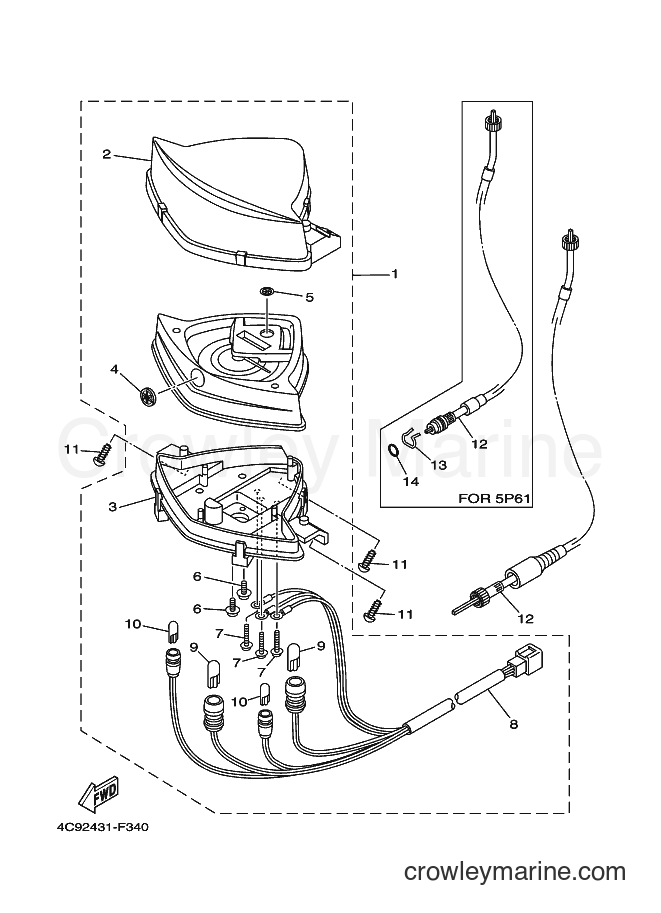

2007 Scooter BI-115D-CW - BI-115D-CW (4C93) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors BI-115D-CW (4C93) [010] - METER
Change View:
1
Required: 1
SPEEDOMETER ASSY
Price unavailable
2
Required: 1
. LENS, SPEEDOMETER
Price unavailable
3
Required: 1
. CASE, METER LOWER
Price unavailable
4
Required: 1
. EMBLEM
Price unavailable
5
Required: 1
. TUNING FORK MARK
Price unavailable
Tapping Screw
6
Yamaha Motors
Tapping Screw90167-04021-00
Required: 2
. SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
Screw with Washer
7
Yamaha Motors
Screw with Washer90159-03102-00
Required: 3
. SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
8
Required: 1
. SOCKET CORD ASSY
Price unavailable
9
Required: 2
. BULB (12V-1.7W T10)
Price unavailable
10
Required: 2
. BULB (T-6.5 12V-1.7W)
Price unavailable
12
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable
12
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable
13
Required: 1
RING, STOP
Price unavailable
14
Required: 1
O-RING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
