2007 Scooter AT115 - AT115 (2B55) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

9

to see part

9

Ships Now

9

Ships Later

9

Out of Stock

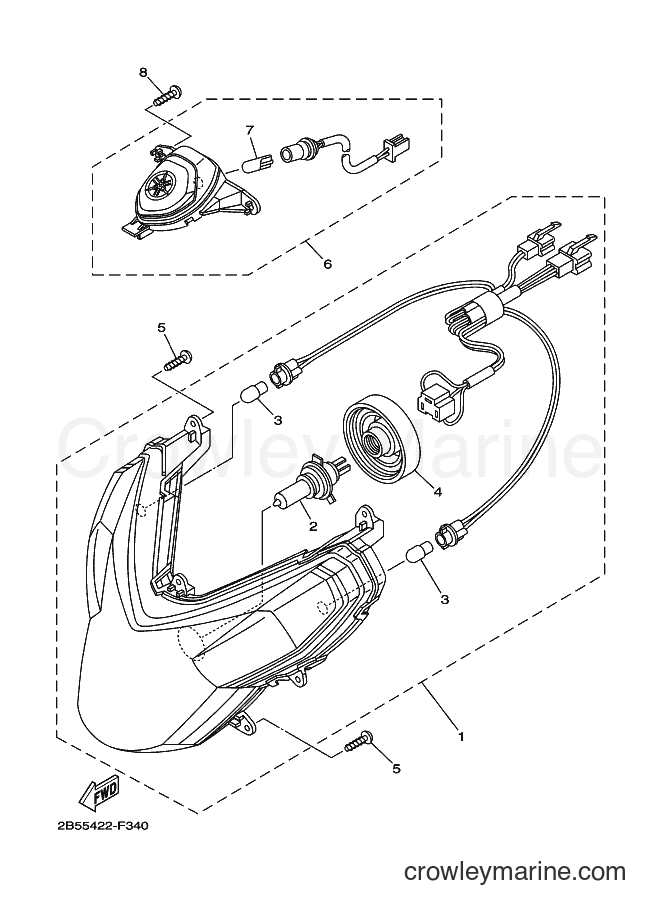

Yamaha Motors AT115 (2B55) [010] - HEADLIGHT

Change View:

1

Required: 1

HEADLIGHT ASSY

Price unavailable

2

Required: 1

. BULB, HEADLIGHT (12V 35/35W)

Price unavailable

3

Required: 2

. BULB, FLASHER (12V-10W T13)

Price unavailable

4

Required: 1

. COVER, SOCKET

Price unavailable

Truss Screw

Truss Screw97707-50014-00

SCREW, TRUSS HEAD TAPPING

~~$9.49~~

$8.07

You save $1.42

6

Required: 1

PILOT LIGHT ASSY 1

Price unavailable

7

Required: 1

. BULB (12V-3.4W)

Price unavailable

Truss Screw

Truss Screw97707-50014-00

SCREW, TRUSS HEAD TAPPING

~~$9.49~~

$8.07

You save $1.42

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
