2007 Scooter AT115C - AT115C (2B56) [010] HANDLE SWITCH & LEVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

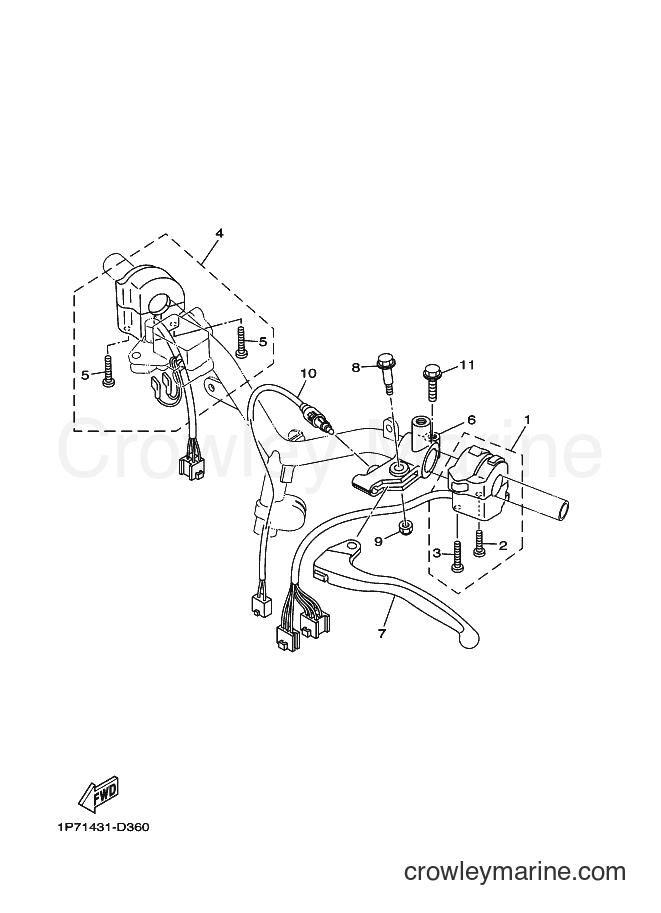

Yamaha Motors AT115C (2B56) [010] - HANDLE SWITCH & LEVER
Change View:
1
Required: 1
SWITCH, HANDLE 4
Price unavailable
2
Required: 1
. SCREW, PAN HEAD
Price unavailable
3
Required: 1
. SCREW, PAN HEAD
Price unavailable
4
Required: 1
SWITCH, HANDLE 1
Price unavailable
5
Required: 2
. SCREW, PAN HEAD
Price unavailable
6
Required: 1
HOLDER, LEVER 1
Price unavailable
7
Required: 1
LEVER 1
Price unavailable
8
Required: 1
BOLT
Price unavailable
NUT
9
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
Cross Ship
Leaves in 2-5 days
$2.90
$3.60
You save $-0.70
More details
10
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
