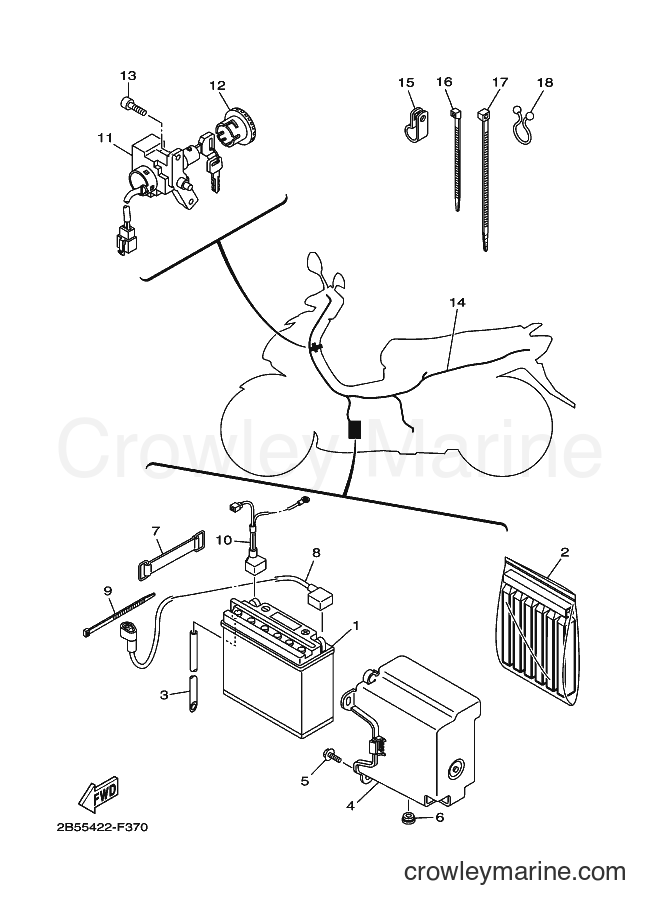

2007 Scooter AT115 - AT115 (2B55) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT115 (2B55) [010] - ELECTRICAL 1
Change View:
1
Required: 1
BATTERY ASSY (GS 12N7A-4B)
Price unavailable
2
Required: 1
BOTTLE, ACID
Price unavailable
3
Required: 1
HOSE
Price unavailable
4
Required: 1
BOX, BATTERY 1
Price unavailable
Bolt with Washer
5
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
6
Required: 1
GROMMET
Price unavailable
7
Required: 1
BAND, BATTERY
Price unavailable
8
Required: 1
WIRE, PLUS LEAD
Price unavailable
9
Required: 1
BAND, SWITCH CORD
Price unavailable
10
Required: 1
WIRE, MINUS LEAD
Price unavailable
11
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
12
Required: 1
CAP, SWITCH
Price unavailable
BOLT
13
Yamaha Motors
BOLT91317-06014-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
14
Required: 1
WIRE HARNESS ASSY
Price unavailable
Clamp
15
Yamaha Motors
Clamp90461-11099-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
Clamp
16
Yamaha Motors
Clamp90464-50800-00
Required: 4
CLAMP
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
Clamp
17
Yamaha Motors
Clamp90464-15152-00
Required: 4
CLAMP
Supersedes: 90465-13275-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Clamp
18
Yamaha Motors
Clamp90464-16801-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
