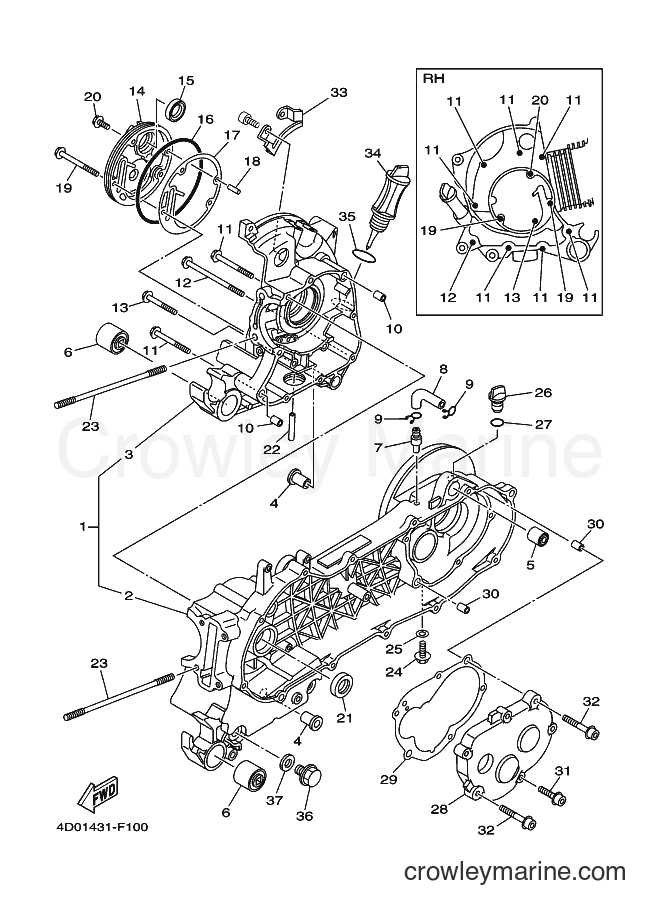

2007 Scooter AL115 - AL115 (5WR5) [010] CRANKCASE diagram
![Yamaha Motors AL115 (5WR5) [010] - CRANKCASE](https://cdn.crowleymarine.com/yamaha/Sc1I65Qw.png)
1
Required: 1
CRANKCASE ASSY
Price unavailable
2
Required: 1
. CRANKCASE 1
Price unavailable
3
Required: 1
. CRANKCASE 2
Price unavailable
4
Required: 2
BUSH
Price unavailable
5
Required: 1
BUSH, REAR SHOCK ABSORBER
Price unavailable
6
Required: 2
BUSH 1
Price unavailable
7
Required: 1
BREATHER
Price unavailable
8
Required: 1
PIPE, BREATHER
Price unavailable
$3.44
You save $0.61
In stock
Only 1 remaining
$2.25
You save $0.40
$2.63
You save $0.47
$1.70
You save $0.30
$2.34
You save $0.41
14
Required: 1
COVER, CAP
Price unavailable
15
Required: 1
OIL SEAL
Price unavailable
16
Required: 1
O-RING
Price unavailable
17
Required: 1
GASKET
Price unavailable
18
Required: 1
PIN, DOWEL
Price unavailable
$2.38
You save $0.42
20
Yamaha Motors
Washer Based Bolt90105-06696-00
Required: 1
BOLT, FLANGE
Supersedes: 95027-06016-00
$8.92
You save $1.57
21
Required: 1
OIL SEAL
Price unavailable
22
Required: 1
PIPE, OIL 1
Price unavailable
23
Required: 4
BOLT, STUD 1
Price unavailable
$4.67
You save $0.82
$6.37
You save $1.12
26
Required: 1
PLUG, OIL
Price unavailable
27
Required: 1
O-RING
Price unavailable
28
Required: 1
COVER, CRANKCASE 2
Price unavailable
29
Required: 1
GASKET, CRANKCASE COVER 2
Price unavailable
In stock
Only 1 remaining
$2.25
You save $0.40
31
Required: 4
BOLT, HEXAGON SOCKET HEAD
Price unavailable
32
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
33
Required: 1
PLATE
Price unavailable
34
Required: 1
PLUG, OIL LEVEL
Price unavailable
35
Required: 1
O-RING
Price unavailable
36
Required: 1
PLUG, STRAIGHT SCREW
Price unavailable
37
Yamaha Motors
Plate Washer90201-12172-00
Required: 1
WASHER, PLATE
$2.93
You save $0.52
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
