2007 Scooter AF115C - AF115C (4D12) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

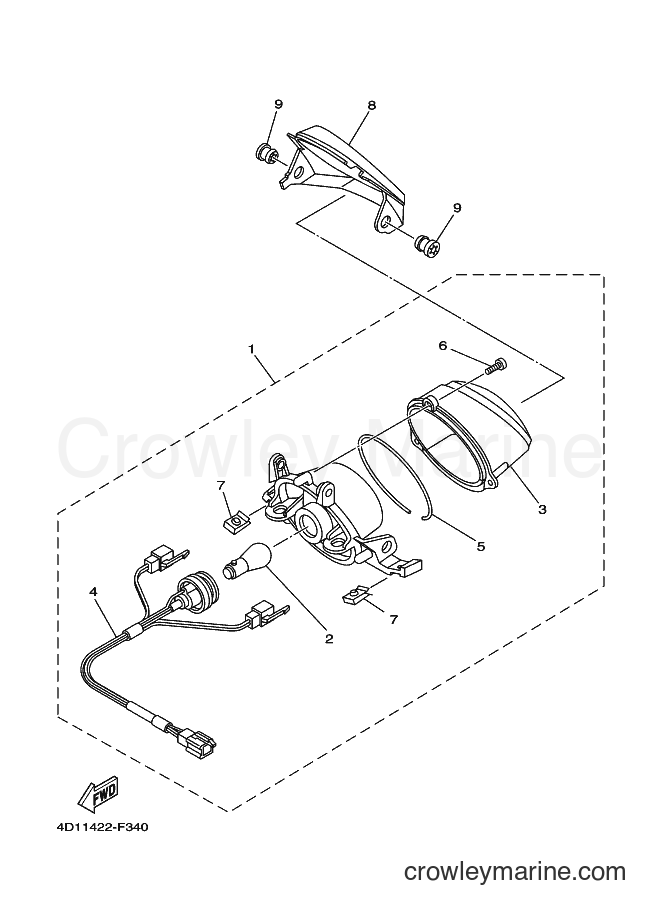

Yamaha Motors AF115C (4D12) [010] - TAILLIGHT
Change View:
1
Required: 1
TAILLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. BULB (12V-21/5W)
Price unavailable
3
Required: 1
. LENS, CP.
Price unavailable
4
Required: 1
. CORD ASSY
Price unavailable
5
Required: 1
. GASKET, TAIL LENS
Price unavailable
6
Required: 3
. SCREW, TAPPING
Price unavailable
7
Required: 2
. NUT, SPRING
Price unavailable
8
Required: 1
RIM, TAILLIGHT
Price unavailable
9
Required: 2
GROMMET
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
