2006 Scooter XC125E - XC125E (4P71) [010] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

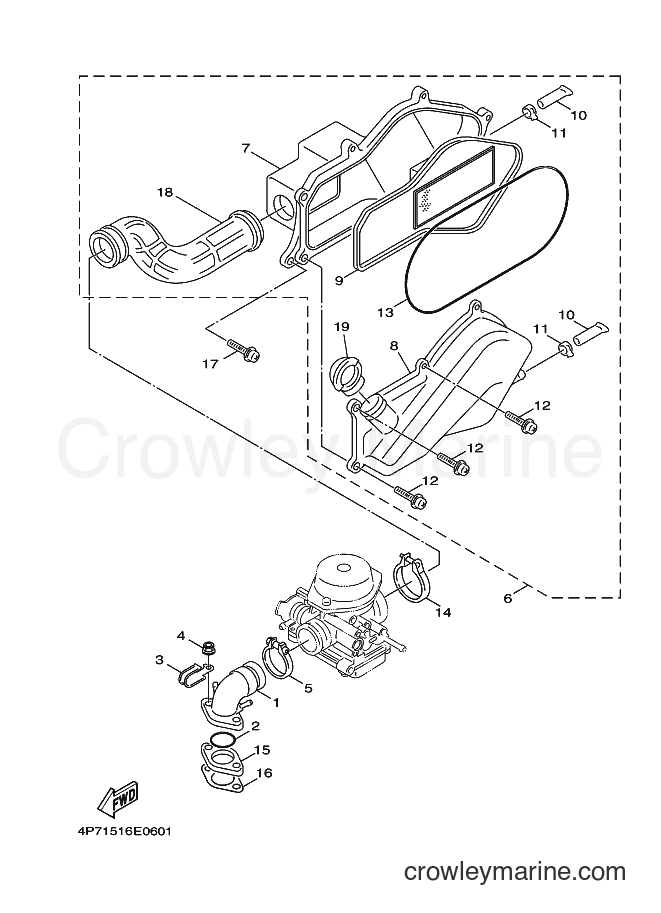

Yamaha Motors XC125E (4P71) [010] - INTAKE
Change View:
1
Required: 1
MANIFOLD
Price unavailable
2
Required: 1
O-RING
Price unavailable
3
Required: 1
CLAMP
Price unavailable
Flange Nut
4
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
5
Required: 1
BAND
Price unavailable
6
Required: 1
AIR CLEANER ASSY.
Price unavailable
7
Required: 1
. CASE, AIR CLEANER 1
Price unavailable
8
Required: 1
. CAP, CLEANER CASE 1
Price unavailable
9
Required: 1
. ELEMENT, AIR CLEANER
Price unavailable
10
Required: 2
. PIPE, DRAIN
Price unavailable
Clip (3YX)
11
Yamaha Motors
Clip (3YX)90467-13133-00
Required: 2
. CLIP
Supersedes: 90467-13813-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
PAN HEAD SCREW
12
Yamaha Motors
PAN HEAD SCREW97607-06220-00
Required: 7
. SCREW,WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
13
Required: 2
. SEAL
Price unavailable
14
Required: 1
BAND
Price unavailable
15
Required: 1
JOINT
Price unavailable
16
Required: 1
GASKET, MANIFOLD
Price unavailable
PAN HEAD SCREW
17
Yamaha Motors
PAN HEAD SCREW97607-06225-00
Required: 2
SCREW,WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
18
Required: 1
. JOINT, AIR CLEANER
Price unavailable
19
Required: 1
. DUCT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
