All diagrams for this model

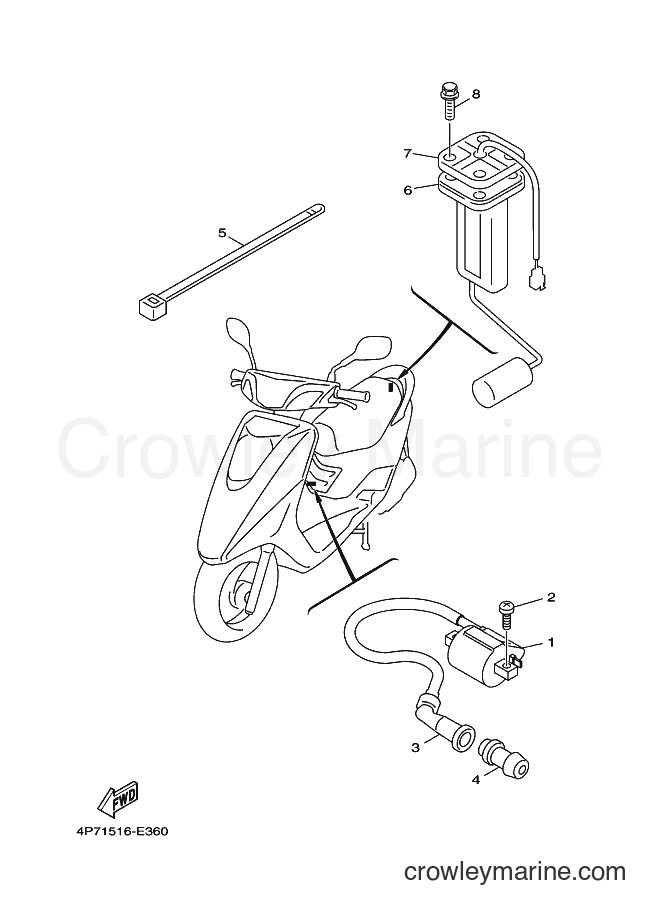

2006 Scooter XC125E - XC125E (4P71) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC125E (4P71) [010] - ELECTRICAL 2
Change View:
1
Required: 1
IGNITION COIL ASSY
Price unavailable
PANHEAD SCREW (3GW)
2
Yamaha Motors
PANHEAD SCREW (3GW)98507-06018-00
Required: 2
SCREW,PAN HEAD
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
3
Required: 1
PLUG CAP ASSY
Price unavailable
4
Required: 1
SEAL, PLUG CAP
Price unavailable
Clamp
5
Yamaha Motors
Clamp90464-12812-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
6
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
7
Required: 1
GASKET, SENDER UNIT
Price unavailable
8
Required: 4
BOLT, WITH WASHER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
