All diagrams for this model

2006 Scooter XC125E - XC125E (4P71) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

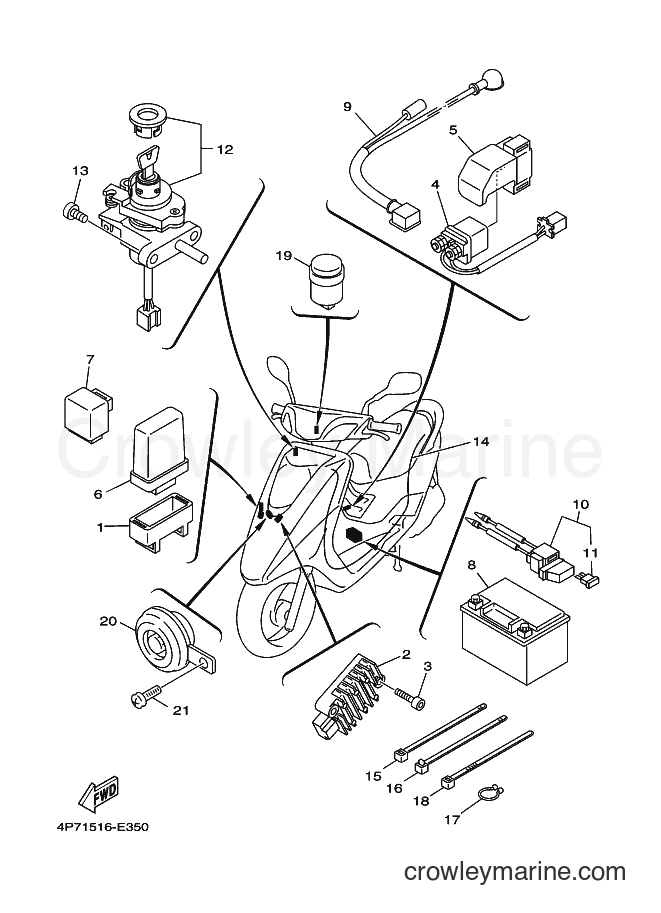

Yamaha Motors XC125E (4P71) [010] - ELECTRICAL 1
Change View:
1
Required: 1
BAND
Price unavailable
2
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
Pan Head Screw
3
Yamaha Motors
Pan Head Screw98517-06025-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06025-00
Cross Ship
Leaves in 2-5 days
$4.05
$3.60
You save $0.45
More details
4
Required: 1
STARTER RELAY ASSY
Price unavailable
5
Required: 1
HOLDER, RELAY
Price unavailable
6
Required: 1
C.D.I. UNIT ASSY
Price unavailable
7
Required: 1
CONTROL UNIT ASSY
Price unavailable
8
Required: 1
BATTERY ASSY (YTX7A-BS)
Price unavailable
9
Required: 1
WIRE, PLUS LEAD
Price unavailable
10
Required: 1
FUSE BOX ASSY
Price unavailable
11
Required: 1
. FUSE (15A-BL)
Price unavailable
12
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
Screw
13
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06012-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.60
You save $0.50
More details
14
Required: 1
WIRE HARNESS ASSY
Price unavailable
Clamp
15
Yamaha Motors
Clamp90464-12812-00
Required: 4
CLAMP
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
16
Required: 1
CLAMP
Price unavailable
Band
17
Yamaha Motors
Band1UA-82591-00-00
Required: 1
CLAMP
Supersedes: 90465-13152-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Clamp
18
Yamaha Motors
Clamp90464-23811-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$0.35
$0.37
You save $-0.02
More details
19
Required: 1
FLASHER RELAY ASSY
Price unavailable
20
Required: 1
HORN
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
