2006 Scooter DT50R - DT50R (2C2E) [010] STARTER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

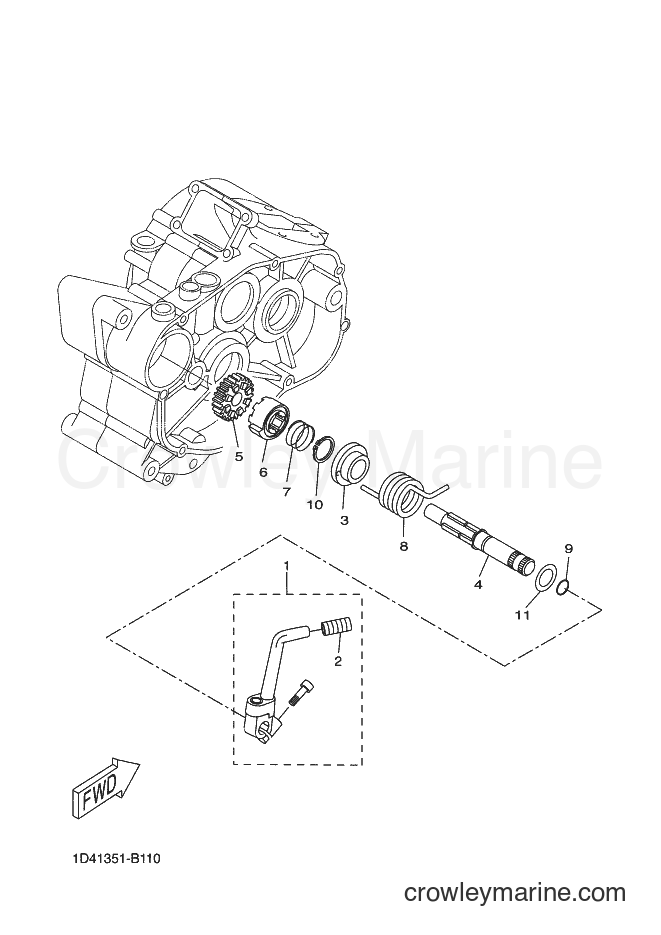

Yamaha Motors DT50R (2C2E) [010] - STARTER
Change View:
1
Required: 1
KICK CRANK ASSY
Price unavailable
2
Required: 1
. COVER, KICK LEVER
Price unavailable
3
Required: 1
SPRING, KICK CRANK
Price unavailable
4
Required: 1
AXLE, KICK
Price unavailable
5
Required: 1
GEAR, KICK IDLE
Price unavailable
6
Required: 1
GEAR, KICK
Price unavailable
7
Required: 1
SPRING
Price unavailable
8
Required: 1
SPRING, KICK PINION
Price unavailable
9
Required: 1
O-RING
Price unavailable
10
Required: 1
CIRCLIP
Price unavailable
11
Required: 1
WASHER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
