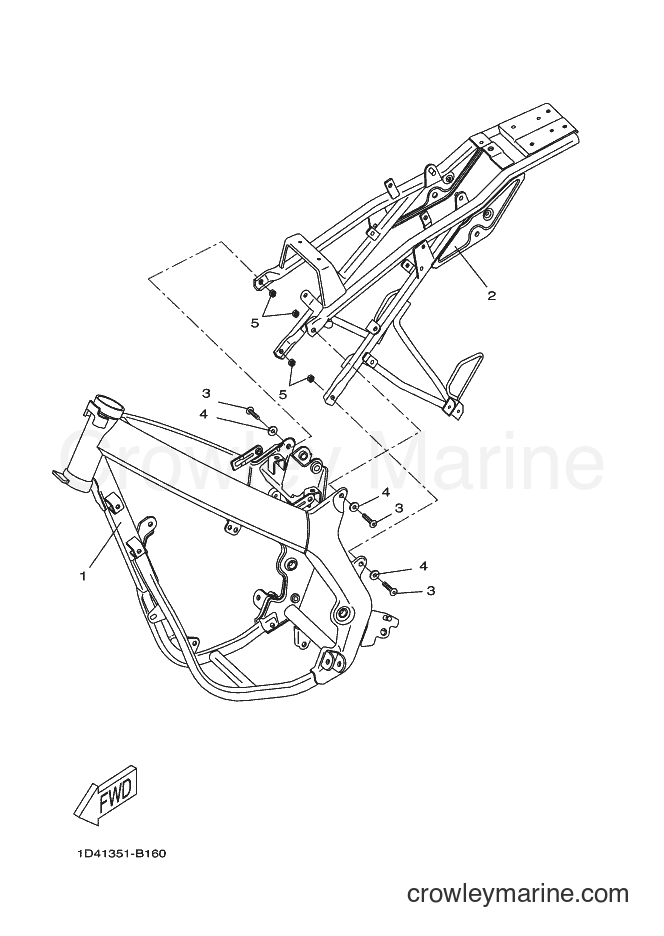

2006 Scooter DT50RSM - DT50RSM (2C3E) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors DT50RSM (2C3E) [010] - FRAME
Change View:
1
Required: 1
FRONT FRAME COMP.
Price unavailable
1
Required: 1
FRONT FRAME COMP.
Price unavailable
2
Required: 1
REAR FRAME COMP.
Price unavailable
3
Required: 4
BOLT 2
Price unavailable
4
Required: 4
WASHER, LOCK
Price unavailable
5
Required: 4
NUT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
