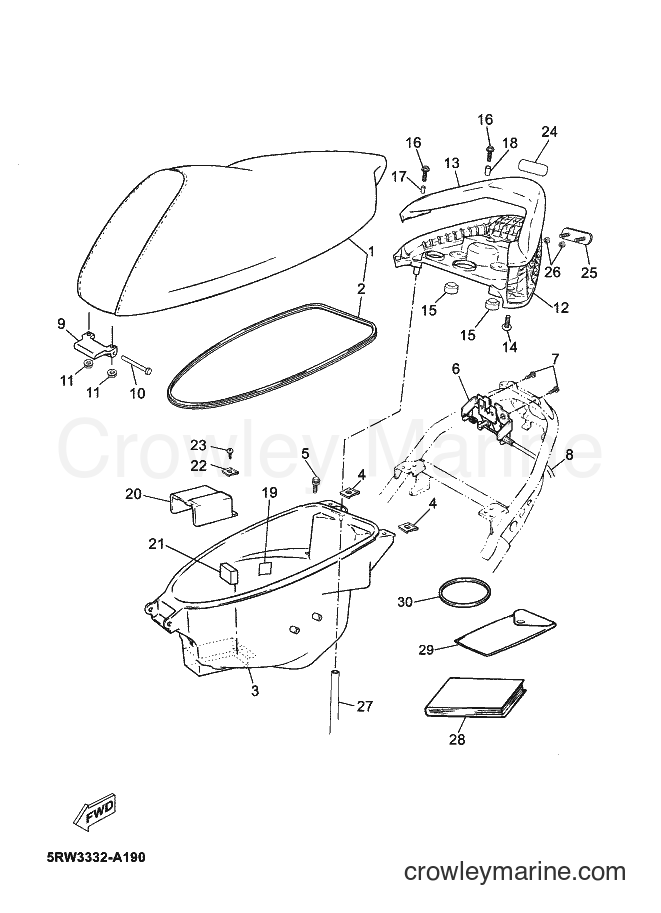

2006 Scooter CS50 - CS50 (3D43) [060] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CS50 (3D43) [060] - SEAT
Change View:
1
Required: 1
DOUBLE SEAT ASSY
Price unavailable
2
Required: 1
. SEAL
Price unavailable
3
Required: 1
BOX 1
Price unavailable
4
Required: 2
NUT, SPRING
Price unavailable
5
Required: 4
BOLT
Price unavailable
6
Required: 1
SEAT LOCK ASSY
Price unavailable
7
Required: 1
SCREW, BIND
Price unavailable
8
Required: 1
CABLE, SEAT LOCK
Price unavailable
9
Required: 1
HINGE, SEAT
Price unavailable
PIN
10
Yamaha Motors
PIN90241-10015-00
Required: 1
PIN
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
SPECIAL SHAPE NUT
11
Yamaha Motors
SPECIAL SHAPE NUT90179-06403-00
Required: 2
NUT
Cross Ship
Leaves in 2-5 days
$6.99
$5.94
You save $1.05
More details
12
Required: 1
HANDLE, SEAT
Price unavailable
13
Required: 1
COVER
Price unavailable
14
Required: 4
SCREW, TAPPING
Price unavailable
15
Required: 2
PAD, SEAT
Price unavailable
16
Required: 4
BOLT, WITH WASHER
Price unavailable
17
Required: 1
COLLAR
Price unavailable
18
Required: 2
COLLAR
Price unavailable
19
Required: 1
LABEL, CAUTION
Price unavailable
20
Required: 1
LID 1
Price unavailable
21
Required: 1
DAMPER, LOCATING 3
Price unavailable
22
Required: 1
NUT, SPRING
Price unavailable
23
Required: 1
SCREW, TAPPING
Price unavailable
24
Required: 1
EMBLEM, YAMAHA
Price unavailable
25
Required: 1
REAR REFLECTOR ASSY
Price unavailable
26
Required: 2
NUT, SPRING
Price unavailable
27
Required: 1
HOSE
Price unavailable
28
Required: 1
MANUAL,OWNER'S
Price unavailable
28
Required: 1
MANUAL,OWNER'S
Price unavailable
28
Required: 1
MANUAL,OWNER'S
Price unavailable
29
Required: 1
TOOL KIT
Price unavailable
30
Required: 1
HOLDER, TOOL
Price unavailable
