All diagrams for this model

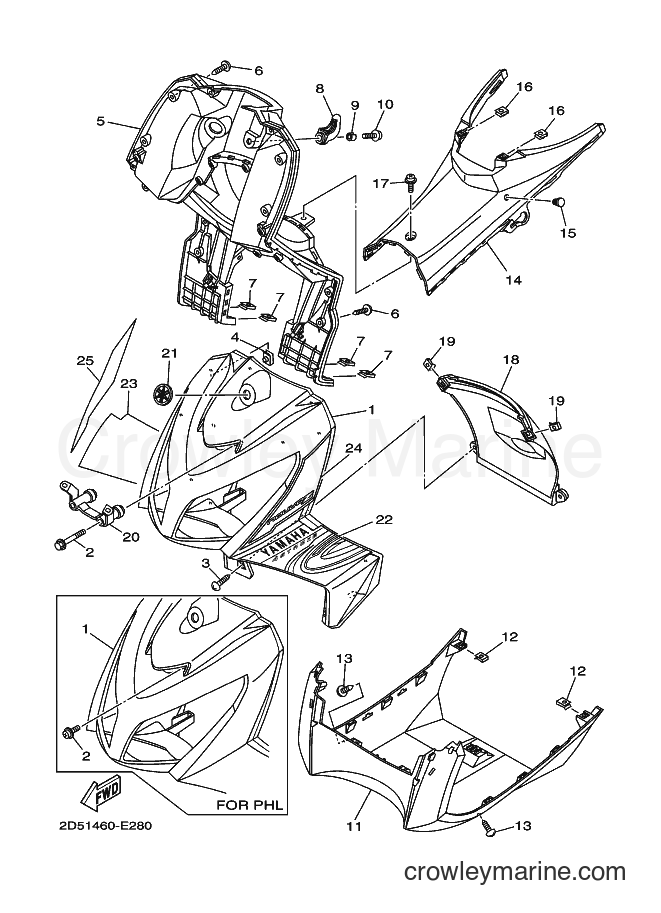

2006 Scooter AT115C - AT115C (2D51) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT115C (2D51) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
Flange Bolt
2
Yamaha Motors
Flange Bolt95817-06060-00
Required: 2
BOLT, FLANGE
Supersedes: 95827-06060-00
Cross Ship
Leaves in 2-5 days
$4.45
$3.78
You save $0.67
More details
2
Required: 2
SCREW, WITH WASHER
Price unavailable
Truss Screw
3
Yamaha Motors
Truss Screw97707-50014-00
Required: 4
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
5
Required: 1
LEG SHIELD ASSY
Price unavailable
Truss Screw
6
Yamaha Motors
Truss Screw97707-50014-00
Required: 10
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
8
Required: 1
HOOK 1
Price unavailable
9
Required: 1
COLLAR
Price unavailable
Screw with Washer
10
Yamaha Motors
Screw with Washer90159-06067-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
11
Required: 1
COVER, LOWER
Price unavailable
Truss Screw
13
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
14
Required: 1
COVER 2
Price unavailable
BLIND PLUG
15
Yamaha Motors
BLIND PLUG4US-F6199-00-00
Required: 1
PLUG, BLIND
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
17
Required: 1
SCREW, WITH WASHER
Price unavailable
18
Required: 1
FENDER, INNER
Price unavailable
20
Required: 1
BRACKET, NUMBER PLATE
Price unavailable
21
Required: 1
EMBLEM
Price unavailable
22
Required: 1
GRAPHIC 1
Price unavailable
23
Required: 1
GRAPHIC 2
Price unavailable
24
Required: 1
GRAPHIC 3
Price unavailable
25
Required: 1
GRAPHIC 4
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
