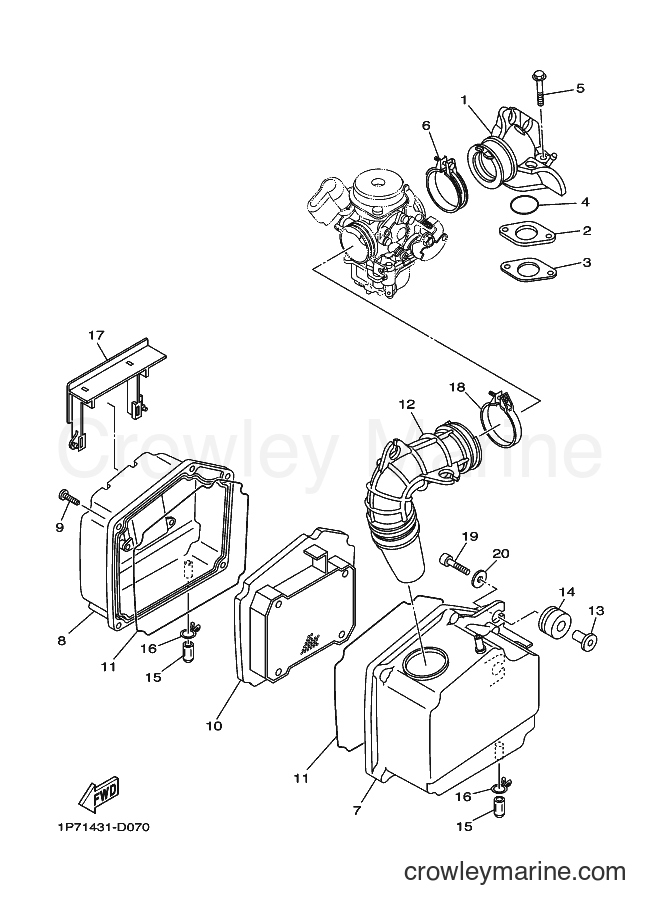

2006 Scooter AT115C - AT115C (2D51) [010] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT115C (2D51) [010] - INTAKE
Change View:
1
Required: 1
MANIFOLD
Price unavailable
2
Required: 1
JOINT
Price unavailable
3
Required: 1
GASKET, MANIFOLD
Price unavailable
Flange Bolt
5
Yamaha Motors
Flange Bolt95817-06050-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.60
$3.91
You save $0.69
More details
6
Required: 1
BAND
Price unavailable
7
Required: 1
CASE, AIR CLEANER 1
Price unavailable
8
Required: 1
CAP, CLEANER CASE 1
Price unavailable
9
Required: 5
SCREW, TAPPING
Price unavailable
10
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
11
Required: 2
SEAL
Price unavailable
12
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
13
Required: 2
COLLAR
Price unavailable
14
Required: 2
GROMMET
Price unavailable
15
Required: 2
PIPE, DRAIN
Price unavailable
16
Required: 2
CLIP
Price unavailable
17
Required: 1
COVER 1
Price unavailable
18
Required: 1
BAND
Price unavailable
Plain Washer
20
Yamaha Motors
Plain Washer90201-06095-00
Required: 2
WASHER, PLATE
Supersedes: 90201-06063-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
