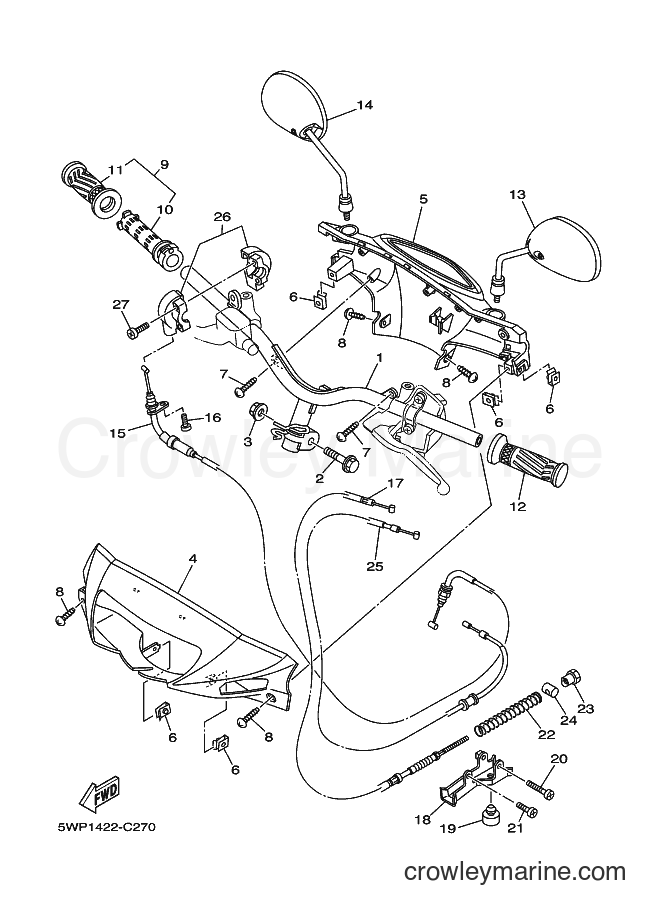

2006 Scooter AL115C - AL115C (5WPB) [010] STEERING HANDLE & CABLE diagram
![Yamaha Motors AL115C (5WPB) [010] - STEERING HANDLE & CABLE](https://cdn.crowleymarine.com/yamaha/GwSw8P8B.png)
1
Required: 1
HANDLE COMP.
Price unavailable
$8.07
You save $1.42
3
Yamaha Motors
Self-Locking Nut90185-10154-00
Required: 1
NUT, SELF-LOCKING
$8.07
You save $1.42
4
Required: 1
COVER, HANDLEBAR UPPER 1
Price unavailable
5
Required: 1
COVER, HANDLEBAR UPPER 2
Price unavailable
6
Required: 5
NUT, SPRING
Price unavailable
7
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
8
Yamaha Motors
Truss Screw97707-50012-00
Required: 4
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
9
Required: 1
GRIP ASSY
Price unavailable
10
Required: 1
. TUBE, THROTTLE GUIDE
Price unavailable
11
Required: 1
. GRIP (RIGHT)
Price unavailable
12
Required: 1
GRIP
Price unavailable
13
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
14
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
15
Required: 1
CABLE, THROTTLE 1
Price unavailable
16
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 1
SCREW, PAN HEAD
In stock
Only 4 remaining
$1.53
You save $0.27
17
Required: 1
CABLE, BRAKE
Price unavailable
18
Required: 1
HOLDER, WIRE
Price unavailable
19
Required: 1
STOPPER
Price unavailable
20
Yamaha Motors
Pan Screw98507-06040-00
Required: 1
SCREW, PAN HEAD
$2.74
You save $0.48
21
Yamaha Motors
Pan Head Screw98507-06014-00
Required: 1
SCREW, PAN HEAD
In stock
Only 1 remaining
$7.59
You save $1.90
22
Required: 1
SPRING, COMPRESSION
Price unavailable
$8.07
You save $1.42
-50%
In stock
Only 4 remaining
$4.75
You save $4.75
25
Required: 1
CABLE, STARTER 1
Price unavailable
26
Required: 1
CABLE CONNECTOR CAP ASSY
Price unavailable
27
Yamaha Motors
Pan Head Screw98507-05025-00
Required: 2
SCREW, PAN HEAD
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
