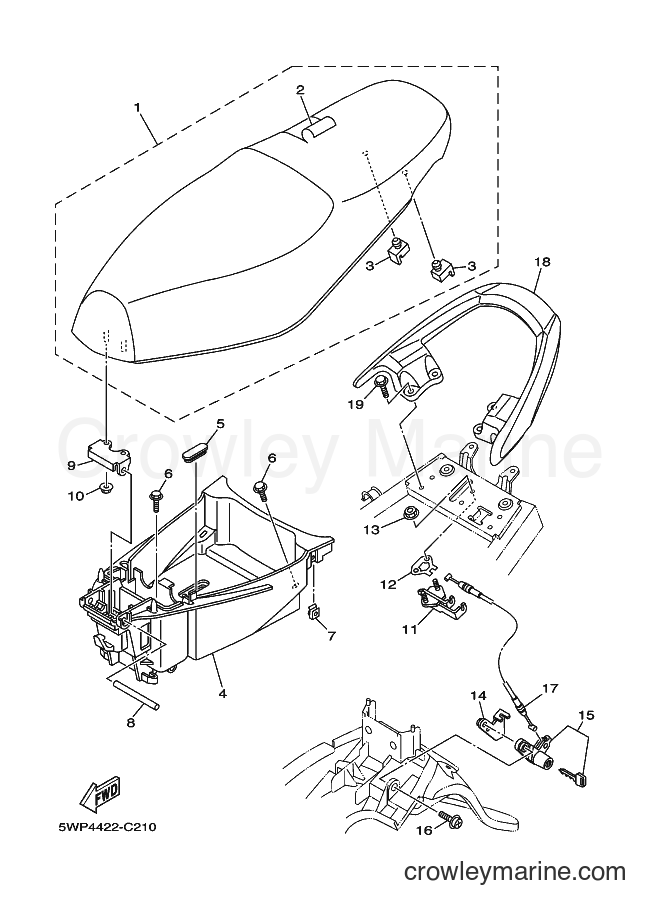

2006 Scooter AL115C - AL115C (5WPB) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL115C (5WPB) [010] - SEAT
Change View:
1
Required: 1
DOUBLE SEAT ASSY
Price unavailable
2
Required: 1
. SEAT COVER COMP.
Price unavailable
3
Required: 2
. PAD, SEAT
Price unavailable
4
Required: 1
BOX 1
Price unavailable
5
Required: 1
PLUG, BLIND
Price unavailable
Bolt with Washer
6
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
7
Required: 2
NUT, SPRING
Price unavailable
8
Required: 1
PIN, SEAT FITTING
Price unavailable
9
Required: 1
HINGE, SEAT
Price unavailable
Flange Nut
10
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
11
Required: 1
SEAT LOCK ASSY
Price unavailable
12
Required: 1
PLATE
Price unavailable
Flange Nut
13
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
14
Required: 1
STAY, LOCK
Price unavailable
15
Required: 1
ROTOR ASSY
Price unavailable
Screw with Washer
16
Yamaha Motors
Screw with Washer90159-06060-00
Required: 1
SCREW, WITH WASHER
Supersedes: 90159-06033-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
17
Required: 1
CABLE, SEAT LOCK
Price unavailable
18
Required: 1
HANDLE, SEAT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
