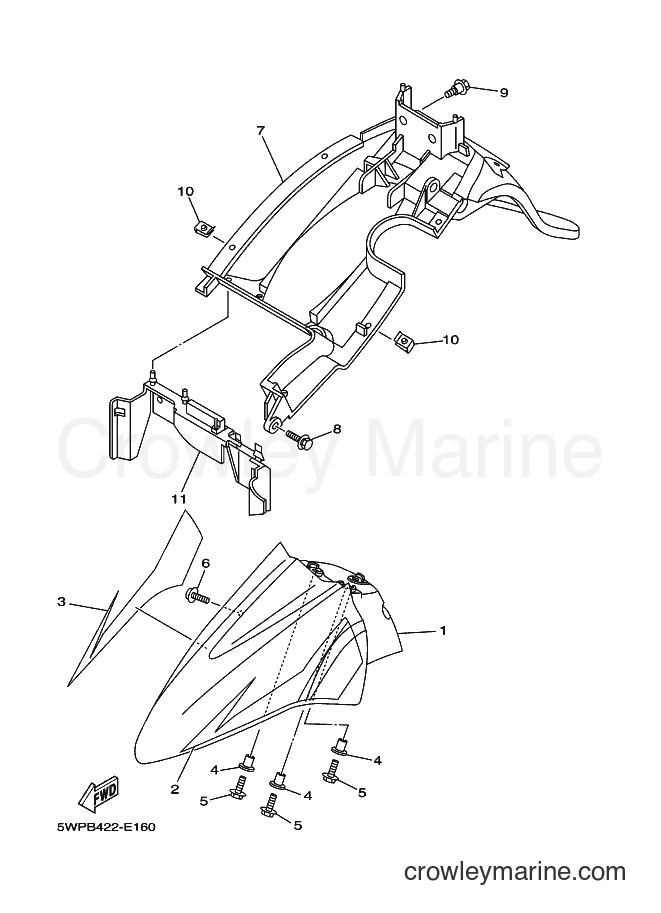

2006 Scooter AL115C - AL115C (5WPB) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL115C (5WPB) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
2
Required: 1
GRAPHIC 3
Price unavailable
3
Required: 1
GRAPHIC 4
Price unavailable
Screw with Washer
6
Yamaha Motors
Screw with Washer90159-06181-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$4.00
$3.40
You save $0.60
More details
7
Required: 1
FENDER, REAR
Price unavailable
Bolt with Washer
8
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 1
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
BOLT
9
Yamaha Motors
BOLT90109-063F1-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$3.10
$2.63
You save $0.47
More details
10
Required: 4
NUT, SPRING
Price unavailable
11
Required: 1
FLAP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
