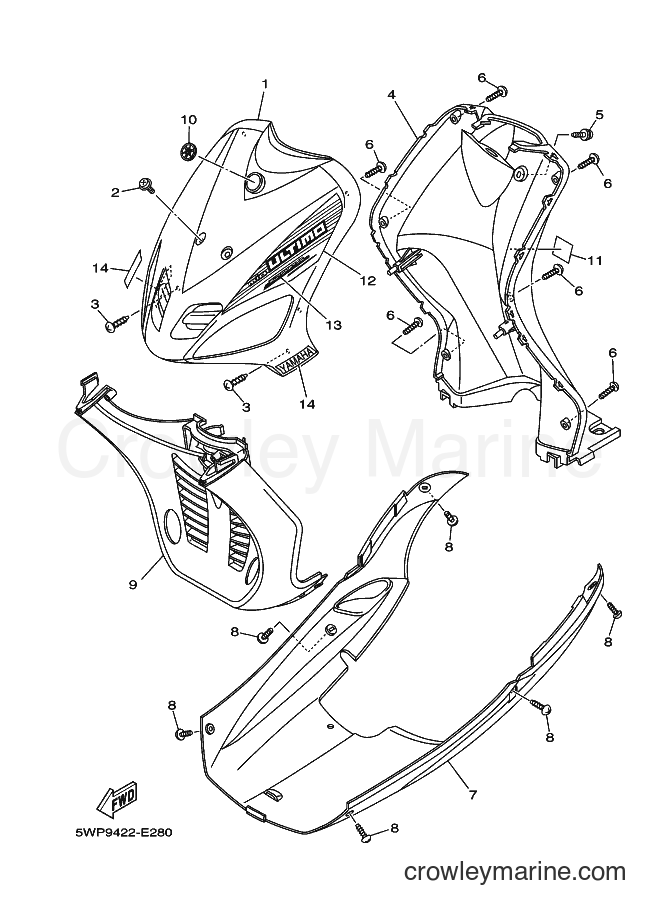

2006 Scooter AL115C - AL115C (5WP9) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL115C (5WP9) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
Screw With Washer
2
Yamaha Motors
Screw With Washer90159-06178-00
Required: 2
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
4
Required: 1
LEG SHIELD 2
Price unavailable
Screw with Washer
5
Yamaha Motors
Screw with Washer90159-06181-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$4.00
$3.40
You save $0.60
More details
7
Required: 1
COVER, LOWER
Price unavailable
9
Required: 1
FENDER, INNER
Price unavailable
10
Required: 1
EMBLEM 1
Price unavailable
11
Required: 1
LABEL, CAUTION
Price unavailable
12
Required: 1
GRAPHIC 4
Price unavailable
13
Required: 1
EMBLEM 3
Price unavailable
14
Required: 2
EMBLEM, YAMAHA
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
