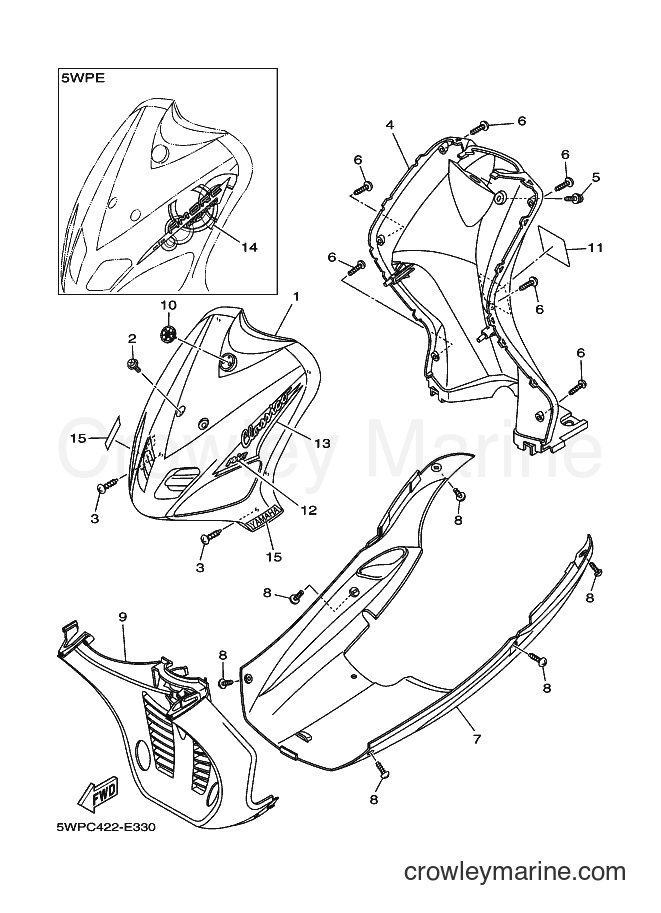

2006 Scooter AL115C - AL115C (5WPE) [010] LEG SHIELD diagram
![Yamaha Motors AL115C (5WPE) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/HbovbWga.png)
1
Required: 1
LEG SHIELD 1
Price unavailable
1
Required: 1
LEG SHIELD 1
Price unavailable
1
Required: 1
LEG SHIELD 1
Price unavailable
2
Yamaha Motors
Screw With Washer90159-06178-00
Required: 2
SCREW, WITH WASHER
$7.22
You save $1.27
3
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
4
Required: 1
LEG SHIELD 2
Price unavailable
5
Yamaha Motors
Screw with Washer90159-06181-00
Required: 1
SCREW, WITH WASHER
$3.40
You save $0.60
6
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 6
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
7
Required: 1
COVER, LOWER
Price unavailable
7
Required: 1
COVER, LOWER
Price unavailable
8
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 6
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
9
Required: 1
FENDER, INNER
Price unavailable
9
Required: 1
FENDER, INNER
Price unavailable
10
Required: 1
EMBLEM 1
Price unavailable
11
Required: 1
LABEL, CAUTION
Price unavailable
12
Required: 1
EMBLEM 3D
Price unavailable
13
Required: 1
GRAPHIC 2
Price unavailable
14
Required: 1
GRAPHIC 5
Price unavailable
15
Required: 2
EMBLEM, YAMAHA
Price unavailable
15
Required: 2
EMBLEM, YAMAHA
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
