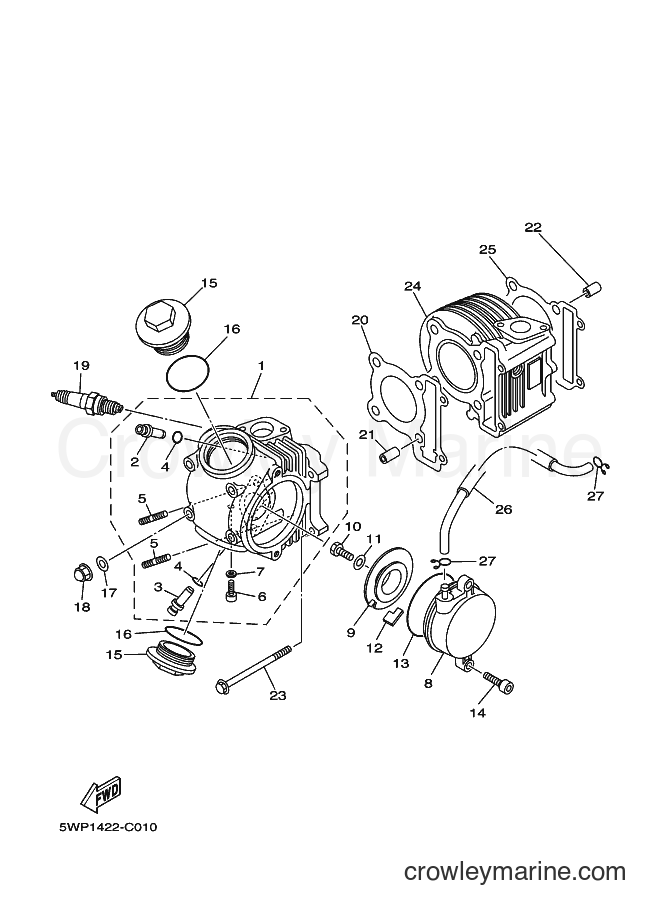

2006 Scooter AL115C - AL115C (5WPE) [010] CYLINDER diagram
![Yamaha Motors AL115C (5WPE) [010] - CYLINDER](https://cdn.crowleymarine.com/yamaha/asbwEg4A.png)
1
Required: 1
CYLINDER HEAD ASSY
Price unavailable
2
Required: 1
. GUIDE, VALVE 1
Price unavailable
3
Required: 1
. GUIDE, VALVE 2
Price unavailable
4
Required: 2
. O-RING
Price unavailable
5
Yamaha Motors
Stud Bolt90116-08806-00
Required: 2
. BOLT, STUD
$1.74
You save $0.31
6
Yamaha Motors
90163-06002-0090153-06029-00
Required: 1
. SCREW, HEXAGON
$9.77
You save $1.72
In stock
Only 4 remaining
$7.31
You save $1.29
8
Required: 1
COVER, CYLINDER HEAD SIDE 1
Price unavailable
9
Required: 1
PLATE, BREATHER
Price unavailable
$0.72
You save $0.13
11
Yamaha Motors
Plate Washer92907-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$0.85
You save $0.15
12
Required: 1
SEAL, LABYRINTH
Price unavailable
13
Required: 1
O-RING
Price unavailable
$2.34
You save $0.41
15
Required: 2
COVER, CYLINDER HEAD SIDE 2
Price unavailable
16
Yamaha Motors
O-Ring93210-44704-00
Required: 2
O-RING
Supersedes: 93210-44889-00
In stock
5+ in stock
$7.22
You save $1.27
17
Yamaha Motors
Plate Washer90201-080L7-00
Required: 4
WASHER, PLATE
Supersedes: 90201-08609-00
$3.44
You save $0.61
$14.02
You save $2.47
19
Required: 1
PLUG SPARK (NGK C7HSA)
Price unavailable
20
Required: 1
GASKET, CYLINDER HEAD 1
Price unavailable
In stock
Only 1 remaining
$2.25
You save $0.40
In stock
Only 1 remaining
$2.25
You save $0.40
$1.70
You save $0.30
24
Required: 1
CYLINDER
Price unavailable
25
Required: 1
GASKET, CYLINDER
Price unavailable
26
Required: 1
HOSE
Price unavailable
27
Yamaha Motors
Clip90467-090A2-00
Required: 2
CLIP
Supersedes: 90467-09006-00
$4.04
You save $0.71
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
