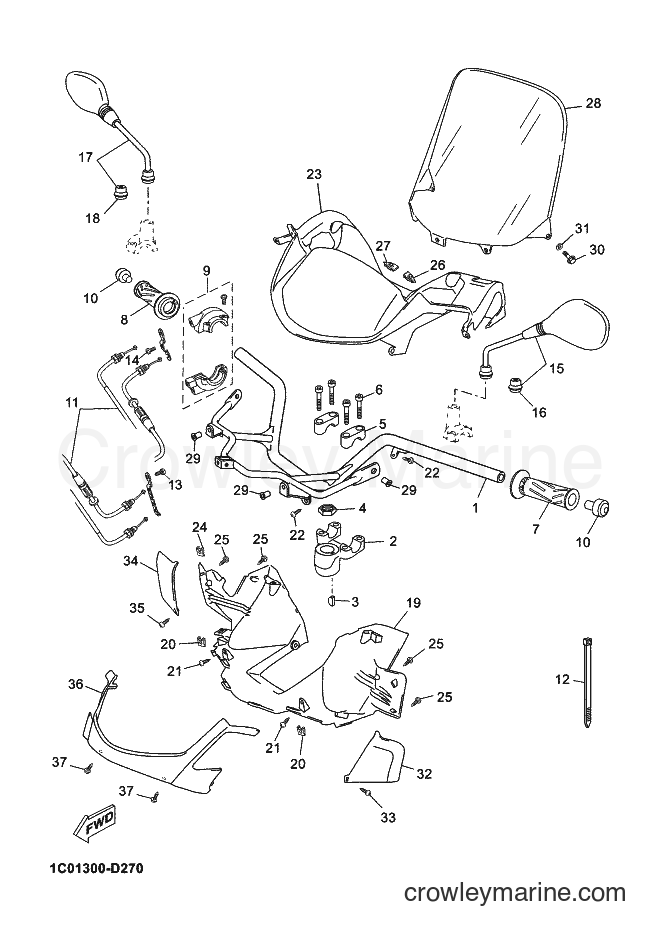

2005 Maxi-Scooter YP250R - YP250R (1C01) [040] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP250R (1C01) [040] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE COMP.
Price unavailable
2
Required: 1
HOLDER, HANDLE LOWER
Price unavailable
Woodruff Key
3
Yamaha Motors
Woodruff Key90280-03017-00
Required: 1
KEY, WOODRUFF
Cross Ship
Leaves in 2-5 days
$8.49
$6.79
You save $1.70
More details
Nut (71F)
4
Yamaha Motors
Nut (71F)90170-20386-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
UPPER HANDLE HOLDER
5
Yamaha Motors
UPPER HANDLE HOLDER4H7-23441-10-00
Required: 2
HOLDER, HANDLE UPPER
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
Socket Bolt
6
Yamaha Motors
Socket Bolt91317-08030-00
Required: 4
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Grip
7
Yamaha Motors
Grip4YR-26241-02-00
Required: 1
GRIP (LEFT)
Cross Ship
Leaves in 2-5 days
$19.99
$16.99
You save $3.00
More details
Grip Assembly
8
Yamaha Motors
Grip Assembly4YR-26240-02-00
Required: 1
GRIP ASSY
Cross Ship
Leaves in 2-5 days
$41.99
$35.69
You save $6.30
More details
9
Required: 1
CABLE CONNECTOR CAP ASSY
Price unavailable
Grip End
10
Yamaha Motors
Grip End51J-26246-01-00
Required: 2
END, GRIP
Cross Ship
Leaves in 2-5 days
$84.99
$72.24
You save $12.75
More details
11
Required: 1
THROTTLE CABLE ASSY
Price unavailable
12
Required: 2
CLAMP
Price unavailable
13
Required: 2
BOLT
Price unavailable
14
Required: 1
SCREW, PAN HEAD
Price unavailable
15
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
16
Required: 1
. BOOT 1
Price unavailable
17
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
18
Required: 1
. BOOT 2
Price unavailable
19
Required: 1
COVER, LOWER
Price unavailable
20
Required: 6
NUT, EMBLEM
Price unavailable
21
Required: 2
SCREW, TAPPING
Price unavailable
22
Required: 4
SCREW, TAPPING
Price unavailable
23
Required: 1
COVER, UPPER
Price unavailable
24
Required: 4
NUT, EMBLEM
Price unavailable
25
Required: 4
SCREW, TAPPING
Price unavailable
26
Required: 1
CAP
Price unavailable
27
Required: 1
CAP 2
Price unavailable
28
Required: 1
SCREEN
Price unavailable
SPECIAL SHAPE NUT
29
Yamaha Motors
SPECIAL SHAPE NUT90179-05523-00
Required: 4
NUT
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
Bolt With Washer
30
Yamaha Motors
Bolt With Washer90119-05193-00
Required: 5
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details
Plate Washer
31
Yamaha Motors
Plate Washer90202-05180-00
Required: 5
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
32
Required: 1
GUARD, BRUSH 1
Price unavailable
33
Required: 1
SCREW, TAPPING
Price unavailable
34
Required: 1
GUARD, BRUSH 2
Price unavailable
35
Required: 1
SCREW, TAPPING
Price unavailable
36
Required: 1
COVER, HANDLE FRONT 1
Price unavailable
37
Required: 2
SCREW, TAPPING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
