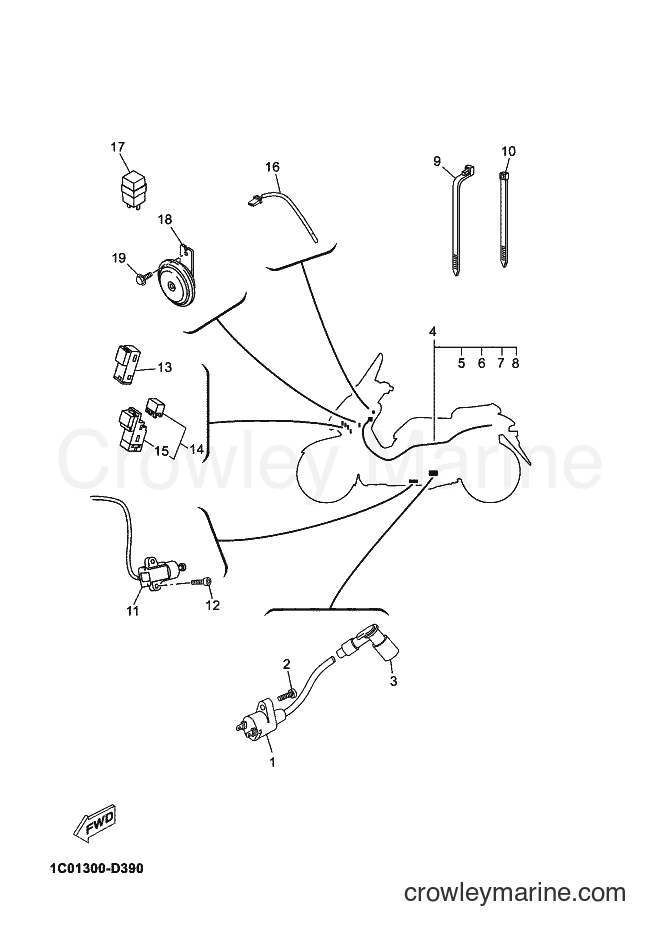

2005 Maxi-Scooter YP250R - YP250R (1C01) [040] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP250R (1C01) [040] - ELECTRICAL 2
Change View:
1
Required: 1
IGNITION COIL ASSY
Price unavailable
2
Required: 1
BOLT, HEXAGON SOCKET HEAD
Price unavailable
3
Required: 1
PLUG CAP ASSY
Price unavailable
4
Required: 1
WIRE HARNESS ASSY
Price unavailable
5
Required: 1
. DIODE ASSY
Price unavailable
6
Required: 3
. FUSE
Price unavailable
7
Required: 4
. FUSE
Price unavailable
8
Required: 2
FUSE
Price unavailable
9
Required: 10
CLAMP
Price unavailable
10
Required: 10
CLAMP
Price unavailable
Side Stand Switch
11
Yamaha Motors
Side Stand Switch3LD-82566-50-00
Required: 1
SWITCH, SIDE STAND
Cross Ship
Leaves in 2-5 days
$64.99
$55.24
You save $9.75
More details
12
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
Starter Relay
13
Yamaha Motors
Starter Relay4HC-81950-00-00
Required: 1
RELAY ASSY
Cross Ship
Leaves in 2-5 days
$49.99
$42.49
You save $7.50
More details
Starter Relay
14
Yamaha Motors
Starter Relay5EA-81950-20-00
Required: 2
RELAY ASSY
Cross Ship
Leaves in 2-5 days
$62.99
$53.54
You save $9.45
More details
RELAY HOLDER
15
Yamaha Motors
RELAY HOLDER5EA-81952-00-00
Required: 1
. HOLDER, RELAY
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
16
Required: 1
SENSOR, EXT, TEMP.
Price unavailable
17
Required: 1
FLASHER RELAY ASSY
Price unavailable
18
Required: 1
HORN
Price unavailable
Flange Bolt
19
Yamaha Motors
Flange Bolt9582M-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 9580M-06012-00
Cross Ship
Leaves in 2-5 days
$0.75
$0.64
You save $0.11
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
