2005 Scooter XC125 - XC125 (5ML3) [040] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

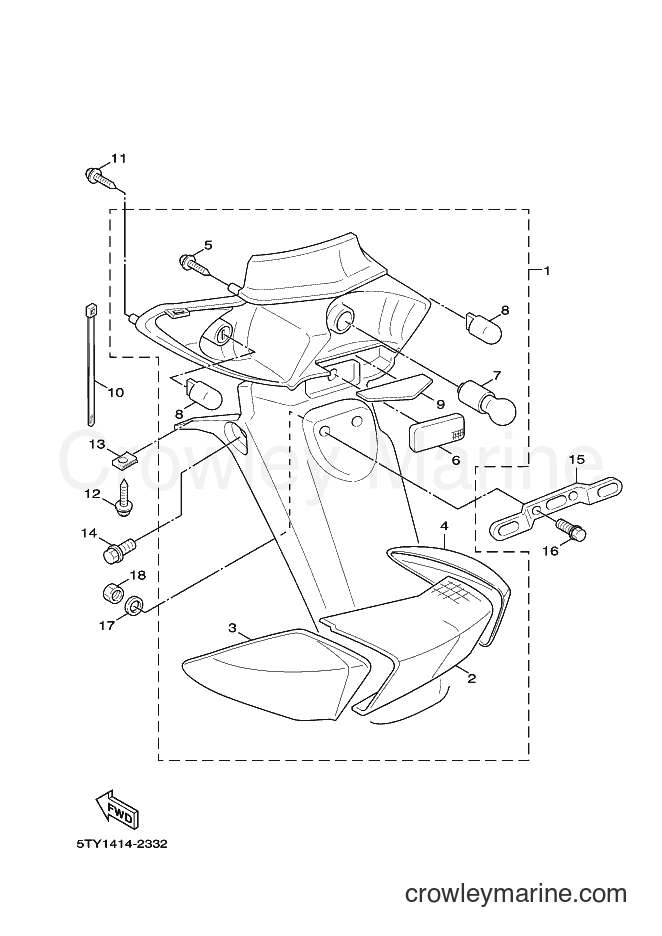

Yamaha Motors XC125 (5ML3) [040] - TAILLIGHT
Change View:
1
Required: 1
TAILLIGHT ASSY
Price unavailable
2
Required: 1
. LENS, TAILLIGHT
Price unavailable
3
Required: 1
. LENS, FLASHER
Price unavailable
4
Required: 1
. LENS, FLASHER 2
Price unavailable
5
Required: 2
. SCREW, TAPPING
Price unavailable
REAR REFLECTOR ASSEMBLY
6
Yamaha Motors
REAR REFLECTOR ASSEMBLY5CP-H5130-01-00
Required: 1
. REAR REFLECTOR ASSY
Cross Ship
Leaves in 2-5 days
$2.55
$2.17
You save $0.38
More details
BULB (12V-21/5W)
7
Yamaha Motors
BULB (12V-21/5W)4VP-H4714-00-00
Required: 1
. BULB (12V-21/5W)
Cross Ship
Leaves in 2-5 days
$3.50
$2.98
You save $0.52
More details
8
Required: 2
. BULB, FLASHER (12V-16W)
Price unavailable
9
Required: 1
. LENS, LICENCE LIGHT
Price unavailable
Clamp
10
Yamaha Motors
Clamp90464-50802-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$0.35
$0.30
You save $0.05
More details
Truss Screw
12
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
BOLT
14
Yamaha Motors
BOLT90109-063F1-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$3.10
$2.63
You save $0.47
More details
15
Required: 1
BRACKET, LICENSE
Price unavailable
Plate Washer
17
Yamaha Motors
Plate Washer90201-06557-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
NUT
18
Yamaha Motors
NUT95617-06100-00
Required: 2
NUT, U
Supersedes: 95607-06100-00
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
