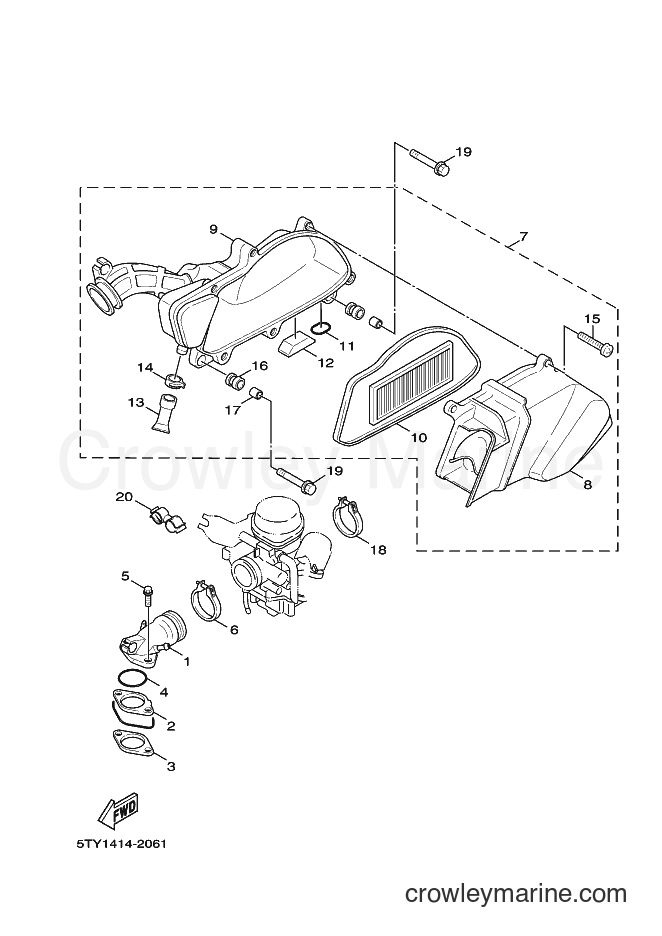

2005 Scooter XC125 - XC125 (5ML3) [010] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC125 (5ML3) [010] - INTAKE
Change View:
1
Required: 1
MANIFOLD
Price unavailable
2
Required: 1
JOINT
Price unavailable
3
Required: 1
GASKET, MANIFOLD
Price unavailable
4
Required: 1
O-RING
Price unavailable
5
Required: 2
BOLT
Price unavailable
6
Required: 1
BAND
Price unavailable
7
Required: 1
AIR CLEANER ASSY.
Price unavailable
8
Required: 1
. CAP, CLEANER CASE 1
Price unavailable
9
Required: 1
. AIR FILTER CASE COMP.
Price unavailable
10
Required: 1
. ELEMENT, AIR CLEANER
Price unavailable
11
Required: 2
. SEAL
Price unavailable
12
Required: 1
. DAMPER 3
Price unavailable
13
Required: 2
. PIPE, DRAIN
Price unavailable
Clip (3YX)
14
Yamaha Motors
Clip (3YX)90467-13133-00
Required: 2
. CLIP
Supersedes: 90467-13813-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
15
Required: 6
. SCREW
Price unavailable
16
Required: 2
. GROMMET
Price unavailable
COLLAR
17
Yamaha Motors
COLLAR5TY-E4449-10-00
Required: 2
. COLLAR
Supersedes: 5TY-E4449-00-00
Cross Ship
Leaves in 2-5 days
$0.80
$0.68
You save $0.12
More details
18
Required: 1
BAND
Price unavailable
Flange Bolt
19
Yamaha Motors
Flange Bolt95817-06030-00
Required: 2
BOLT, FLANGE
Supersedes: 95807-06030-00
Cross Ship
Leaves in 2-5 days
$4.65
$3.95
You save $0.70
More details
Clamp
20
Yamaha Motors
Clamp90464-23811-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$0.35
$0.30
You save $0.05
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
