All diagrams for this model

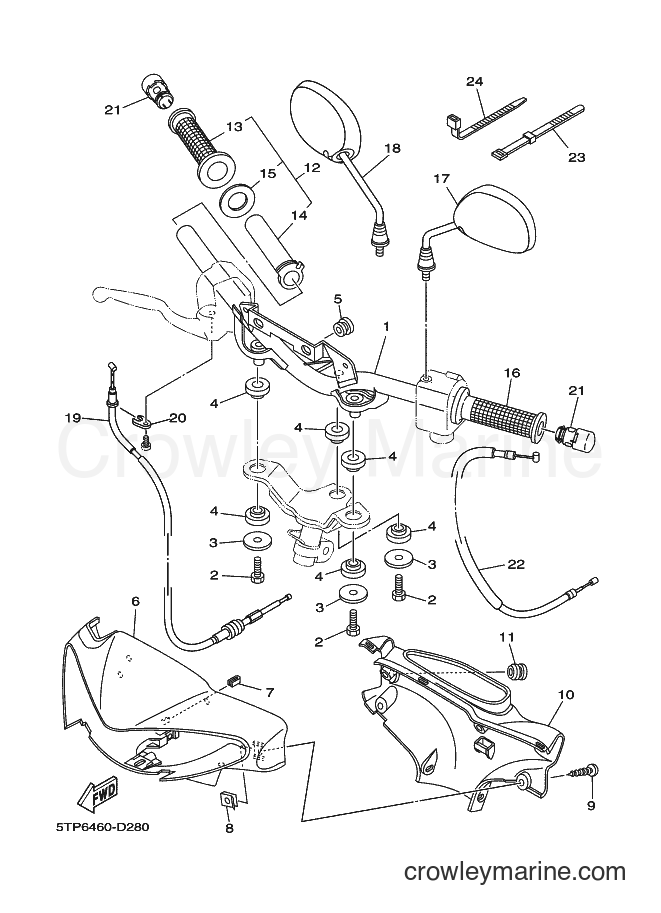

2005 Scooter T110SE - T110SE (5TP8) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110SE (5TP8) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE
Price unavailable
Bolt
2
Yamaha Motors
Bolt97017-08016-00
Required: 3
BOLT
Supersedes: 97007-08016-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plate Washer
3
Yamaha Motors
Plate Washer90201-08612-00
Required: 3
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
4
Required: 6
DAMPER
Price unavailable
Grommet
5
Yamaha Motors
Grommet90480-01558-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$4.65
$3.95
You save $0.70
More details
6
Required: 1
COVER, HANDLEBAR UPPER 1
Price unavailable
7
Required: 2
DAMPER
Price unavailable
Truss Screw
9
Yamaha Motors
Truss Screw97707-50014-00
Required: 6
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
10
Required: 1
COVER, HANDLE 2
Price unavailable
BLIND PLUG
11
Yamaha Motors
BLIND PLUG4US-F6199-00-00
Required: 1
PLUG, BLIND
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
12
Required: 1
GRIP ASSY
Price unavailable
13
Required: 1
. GRIP (RIGHT)
Price unavailable
14
Required: 1
. TUBE, THROTTLE GUIDE
Price unavailable
Plate Washer
15
Yamaha Motors
Plate Washer90201-261L1-00
Required: 1
. WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
16
Required: 1
GRIP
Price unavailable
17
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
18
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
19
Required: 1
CABLE, THROTTLE 1
Price unavailable
20
Required: 1
HOLDER
Price unavailable
21
Required: 2
END, GRIP
Price unavailable
22
Required: 1
CABLE, STARTER 1
Price unavailable
23
Required: 2
BAND, SWITCH CORD
Price unavailable
24
Required: 1
CLAMP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
