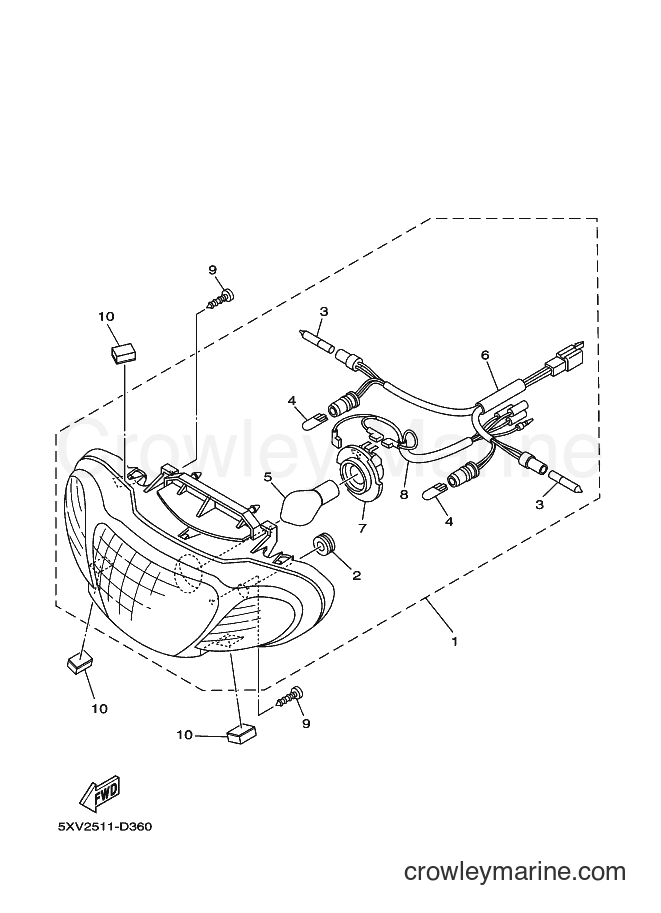

2005 Scooter T110 - T110 (5XV2) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110 (5XV2) [010] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT ASSY
Price unavailable
2
Required: 1
. GROMMET
Price unavailable
3
Required: 2
. BULB (12V-21W)
Price unavailable
4
Required: 2
. BULB (12V-3W)
Price unavailable
5
Required: 1
. BULB (12V-35/35W)
Price unavailable
6
Required: 1
. SOCKET CORD ASSY 1
Price unavailable
7
Required: 1
. SOCKET, HEADLIGHT
Price unavailable
8
Required: 1
. CORD, HEADLIGHT
Price unavailable
Truss Screw
9
Yamaha Motors
Truss Screw97707-50014-00
Required: 3
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
10
Required: 3
DAMPER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
