All diagrams for this model

2005 Scooter T110 - T110 (5XV2) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

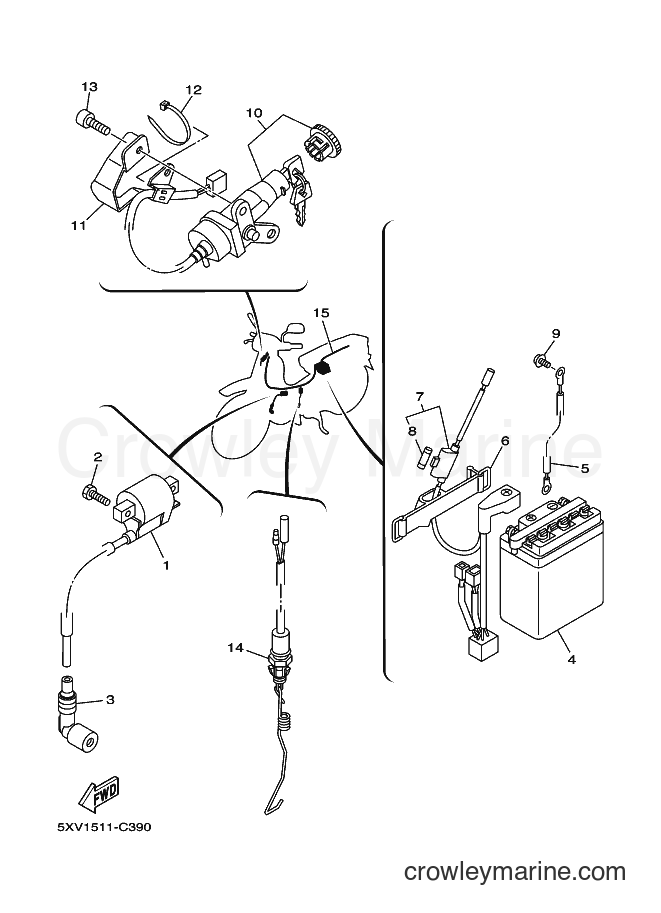

Yamaha Motors T110 (5XV2) [010] - ELECTRICAL 1
Change View:
1
Required: 1
IGNITION COIL ASSY
Price unavailable
Hexagon Bolt
2
Yamaha Motors
Hexagon Bolt97017-06016-00
Required: 2
BOLT
Supersedes: 97007-06016-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
3
Required: 1
PLUG CAP ASSY
Price unavailable
4
Required: 1
BATTERY ASSY (GM5Z-3B)
Price unavailable
5
Required: 1
WIRE, MINUS LEAD
Price unavailable
6
Required: 1
BAND, BATTERY
Price unavailable
7
Required: 1
FUSE HOLDER ASSY
Price unavailable
Fuse (12V/10A)
8
Yamaha Motors
Fuse (12V/10A)27V-82151-00-00
Required: 1
. FUSE (7A)
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
9
Required: 1
SCREW,WITH WASHER
Price unavailable
10
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
11
Required: 1
PROTECTOR
Price unavailable
12
Required: 1
CLAMP
Price unavailable
BOLT
13
Yamaha Motors
BOLT91317-06014-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
14
Required: 1
STOP SWITCH ASSY
Price unavailable
15
Required: 1
WIRE HARNESS ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
