2005 Scooter T105SE - T105SE (5HUD) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

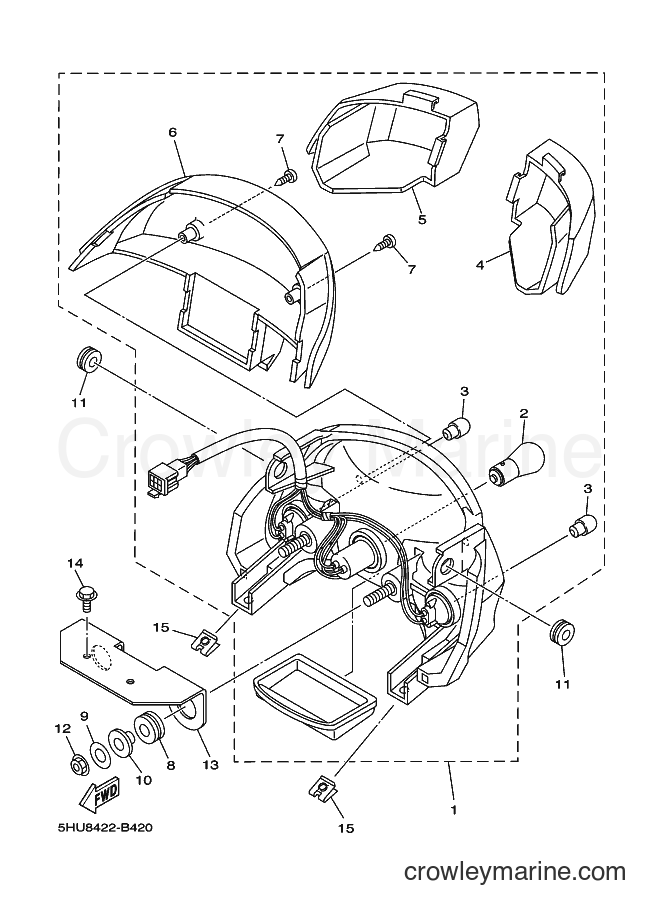

Yamaha Motors T105SE (5HUD) [010] - TAILLIGHT
Change View:
1
Required: 1
TAILLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. BULB
Price unavailable
3
Required: 2
. BULB, FLASHER
Price unavailable
4
Required: 1
. LENS, FLASHER
Price unavailable
5
Required: 1
. LENS, FLASHER 2
Price unavailable
6
Required: 1
. LENS, TAILLIGHT
Price unavailable
Pan Head Tap Screw
7
Yamaha Motors
Pan Head Tap Screw97707-40520-00
Required: 2
. SCREW, TAPPING
Supersedes: 97706-40620-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
8
Required: 2
GROMMET
Price unavailable
Plain Washer
9
Yamaha Motors
Plain Washer 90201-06071-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
COLLAR
10
Yamaha Motors
COLLAR90387-06241-00
Required: 2
COLLAR
Supersedes: 90387-062E0-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
GROMMET, WATER TUBE (UPPER)
11
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-13428-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Flange Nut
12
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
13
Required: 1
BRACKET, TAILLIGHT
Price unavailable
Flange Bolt
14
Yamaha Motors
Flange Bolt95807-06016-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.99
$0.84
You save $0.15
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
