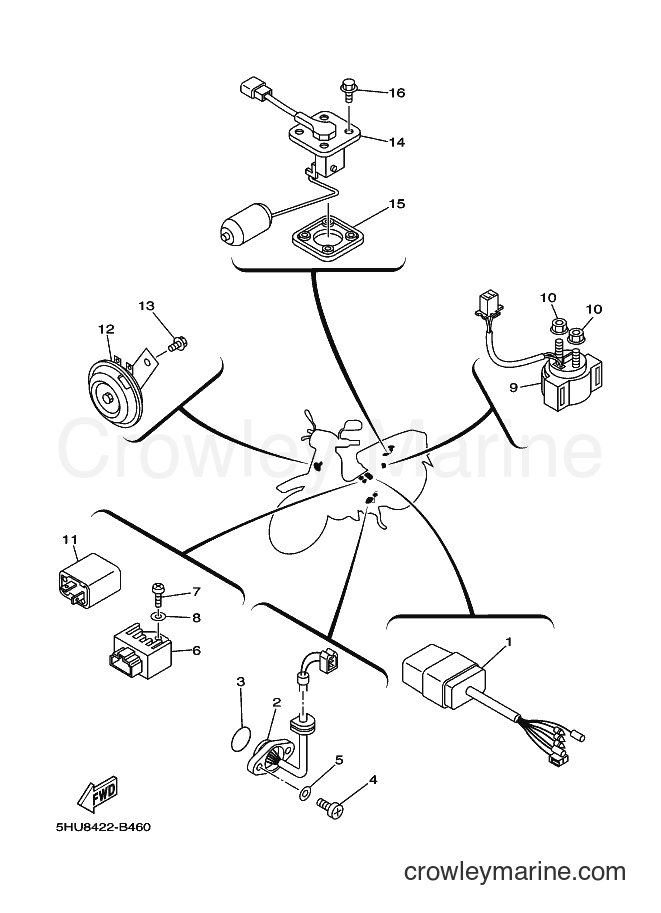

2005 Scooter T105E - T105E (5HUC) [010] ELECTRICAL 2 diagram
![Yamaha Motors T105E (5HUC) [010] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/EmMJL5q6.png)
1
Required: 1
C.D.I. UNIT ASSY
Price unavailable
2
Required: 1
NEUTRAL SWITCH ASSY
Price unavailable
3
Yamaha Motors
93210-20573-0093210-22382-00
Required: 1
O-RING
Supersedes: 93210-22800-00
$8.07
You save $1.42
3
Yamaha Motors
O-Ring93210-20573-00
Required: 1
O-RING
Supersedes: 93210-228G1-00
In stock
Only 5 remaining
$8.07
You save $1.42
4
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 2
SCREW, PAN HEAD
In stock
Only 4 remaining
$1.53
You save $0.27
5
Yamaha Motors
Plate Washer92907-05600-00
Required: 2
WASHER, PLATE
$0.85
You save $0.15
6
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
7
Yamaha Motors
Pan Head Screw98507-06016-00
Required: 1
SCREW, PAN HEAD
$2.96
You save $0.52
8
Yamaha Motors
Plate Washer92907-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$0.85
You save $0.15
9
Required: 1
STARTER RELAY ASSY
Price unavailable
$0.85
You save $0.15
11
Required: 1
FLASHER RELAY ASSY
Price unavailable
12
Required: 1
HORN
Price unavailable
13
Yamaha Motors
Flange Bolt95817-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06010-00
In stock
Only 4 remaining
$4.67
You save $0.82
14
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
15
Required: 1
GASKET, SENDER UNIT
Price unavailable
16
Yamaha Motors
Bolt with Washer90119-05071-00
Required: 4
BOLT, WITH WASHER
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
