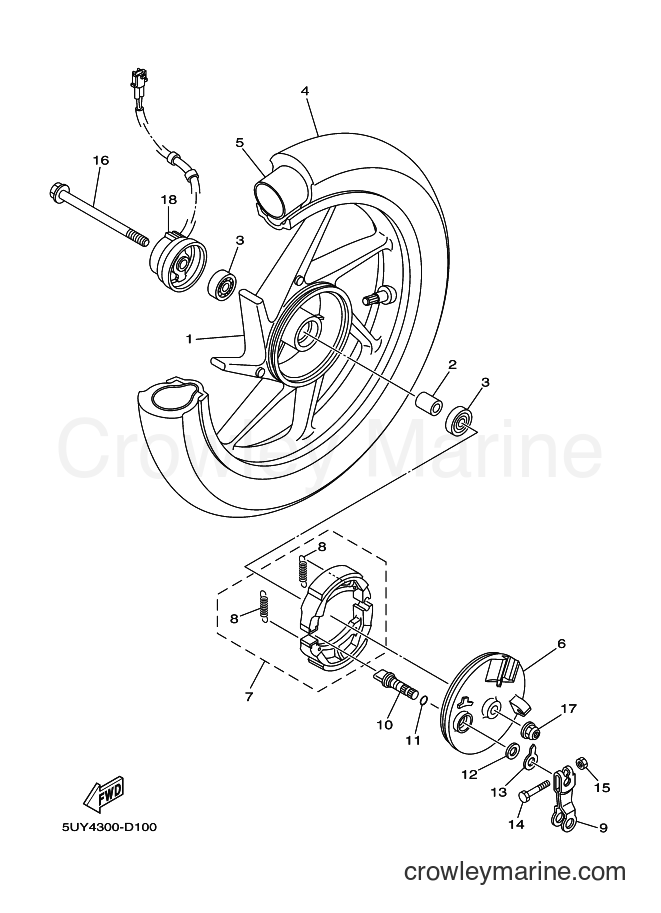

2005 Scooter EA06 PASSOL - EA06 PASSOL (5UY4) [040] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors EA06 PASSOL (5UY4) [040] - FRONT WHEEL
Change View:
1
Required: 1
CAST WHEEL, FRONT
Price unavailable
2
Required: 1
COLLAR, WHEEL
Price unavailable
BEARING
3
Yamaha Motors
BEARING93306-20009-00
Required: 2
BEARING
Cross Ship
Leaves in 2-5 days
$48.99
$41.64
You save $7.35
More details
4
Required: 1
TIRE (60/100-12 36J D311)
Price unavailable
5
Required: 1
TUBE (60/100-12)
Price unavailable
6
Required: 1
PLATE, BRAKE SHOE
Price unavailable
7
Required: 1
BRAKE SHOE KIT
Price unavailable
8
Required: 2
. SPRING, RETURN
Price unavailable
9
Required: 1
LEVER, CAMSHAFT 1
Price unavailable
10
Required: 1
CAMSHAFT
Price unavailable
11
Required: 1
O-RING
Price unavailable
S-TYPE OIL SEAL
12
Yamaha Motors
S-TYPE OIL SEAL93101-10037-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$1.49
$1.27
You save $0.22
More details
INDICATOR PLATE
13
Yamaha Motors
INDICATOR PLATE3L8-2513A-00-00
Required: 1
PLATE, INDICATOR
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
BOLT
14
Yamaha Motors
BOLT90101-06291-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Nut
15
Yamaha Motors
Nut95317-06600-00
Required: 1
NUT
Supersedes: 95307-06600-00
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details
16
Required: 1
AXLE, WHEEL
Price unavailable
Self-Locking Nut
17
Yamaha Motors
Self-Locking Nut90185-10154-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
18
Required: 1
SENSOR, SPEED
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
