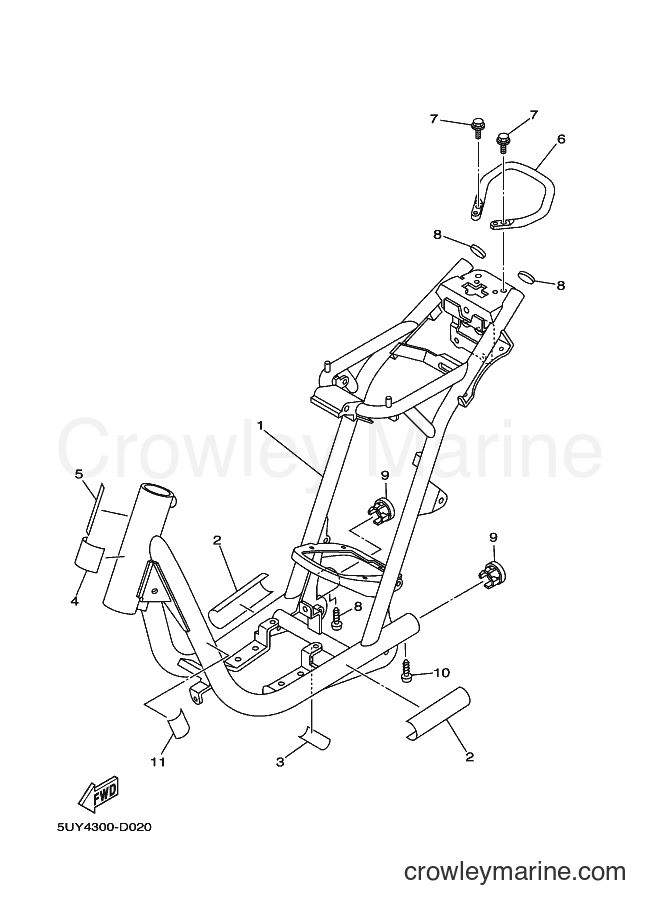

2005 Scooter EA06 PASSOL - EA06 PASSOL (5UY4) [030] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors EA06 PASSOL (5UY4) [030] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 2
SEAL
Price unavailable
Seal 1
3
Yamaha Motors
Seal 13SP-21732-00-00
Required: 1
SEAL 1
Cross Ship
Leaves in 2-5 days
$18.99
$16.14
You save $2.85
More details
Shift Bracket Seal
4
Yamaha Motors
Shift Bracket Seal5UY-21269-00-00
Required: 1
SEAL
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
Fuel Tank Protector
5
Yamaha Motors
Fuel Tank Protector3HA-24141-00-00
Required: 1
PROTECTOR, FUEL TANK
Cross Ship
Leaves in 2-5 days
$15.49
$13.17
You save $2.32
More details
6
Required: 1
HANDLE, STANDING
Price unavailable
Small Flange Bolt
7
Yamaha Motors
Small Flange Bolt95027-08020-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
8
Required: 2
COVER 2
Price unavailable
9
Required: 2
CAP, TOOL BOX
Price unavailable
Tapping Screw
10
Yamaha Motors
Tapping Screw97707-30512-00
Required: 2
SCREW, TAPPING
Supersedes: 97707-30112-00
Cross Ship
Leaves in 2-5 days
$1.55
$1.32
You save $0.23
More details
11
Required: 1
LABEL
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
