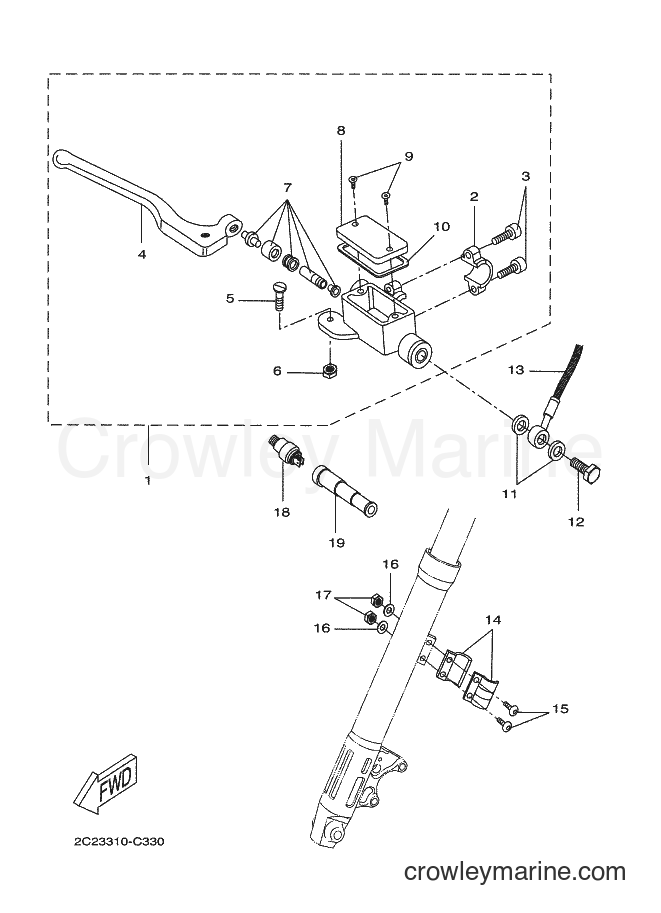

2005 Scooter DT50RSM - DT50RSM (2C3A) [010] FRONT MASTER CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors DT50RSM (2C3A) [010] - FRONT MASTER CYLINDER
Change View:
1
Required: 1
MASTER CYLINDER ASSY
Price unavailable
2
Required: 1
. HOLDER
Price unavailable
3
Required: 2
. SCREW, HANDLE COVER
Price unavailable
4
Required: 1
. LEVER 2
Price unavailable
5
Required: 1
. BOLT, LEVER
Price unavailable
6
Required: 1
. NUT 1
Price unavailable
7
Required: 1
. PISTON, MASTER CYLINDER
Price unavailable
8
Required: 1
. COVER, HOUSING
Price unavailable
9
Required: 2
. SCREW
Price unavailable
10
Required: 1
. COVER, DUST
Price unavailable
11
Required: 2
WASHER, THRUST
Price unavailable
12
Required: 1
BOLT
Price unavailable
13
Required: 1
HOSE, BRAKE 1
Price unavailable
13
Required: 1
HOSE, BRAKE 1
Price unavailable
14
Required: 1
HOLDER, BRAKE HOSE 1
Price unavailable
15
Required: 2
BOLT 2
Price unavailable
16
Required: 2
WASHER
Price unavailable
17
Required: 2
NUT
Price unavailable
18
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
19
Required: 1
CAP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
