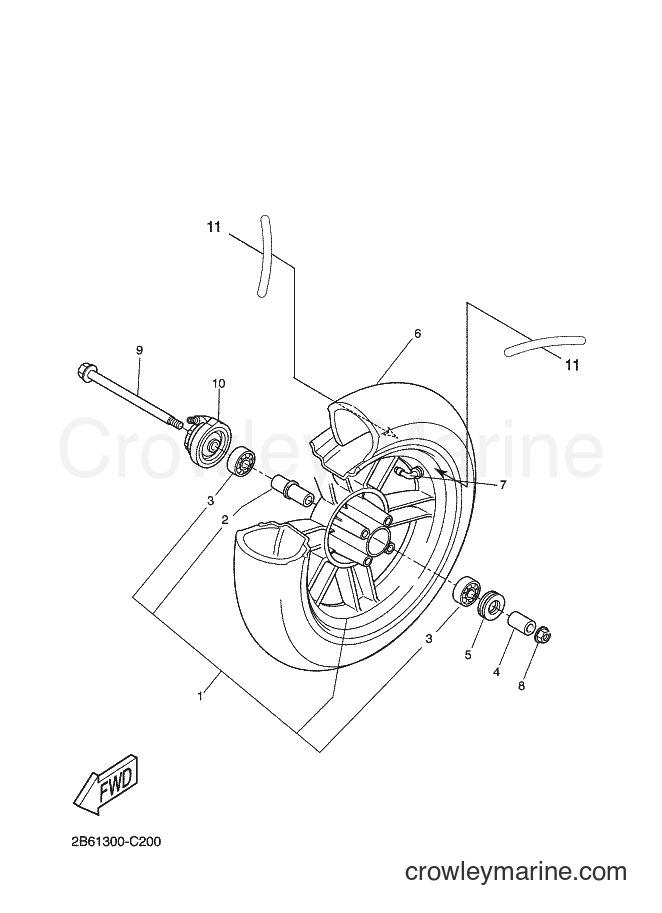

2005 Scooter CW50L - CW50L (2B63) [050] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CW50L (2B63) [050] - FRONT WHEEL
Change View:
1
Required: 1
CAST WHEEL, FRONT
Price unavailable
BEARING SPACER
2
Yamaha Motors
BEARING SPACER4PA-F5117-00-00
Required: 1
. SPACER, BEARING
Cross Ship
Leaves in 2-5 days
$14.49
$12.32
You save $2.17
More details
BEARING
3
Yamaha Motors
BEARING93306-300Y8-00
Required: 2
. BEARING
Cross Ship
Leaves in 2-5 days
$42.99
$36.54
You save $6.45
More details
4
Required: 1
COLLAR
Price unavailable
DD-Type Oil Seal
5
Yamaha Motors
DD-Type Oil Seal93106-20001-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$2.50
$2.13
You save $0.38
More details
6
Required: 1
TIRE ( 120/70-12 51L/TL)
Price unavailable
Air Valve Assembly
7
Yamaha Motors
Air Valve Assembly3VL-F5170-10-00
Required: 1
AIR VALVE ASSY
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
Wheel Axle
9
Yamaha Motors
Wheel Axle3AA-25181-00-00
Required: 1
AXLE, WHEEL
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
10
Required: 1
GEAR UNIT ASSY
Price unavailable
11
Required: 2
EMBLEM, WHEEL
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
