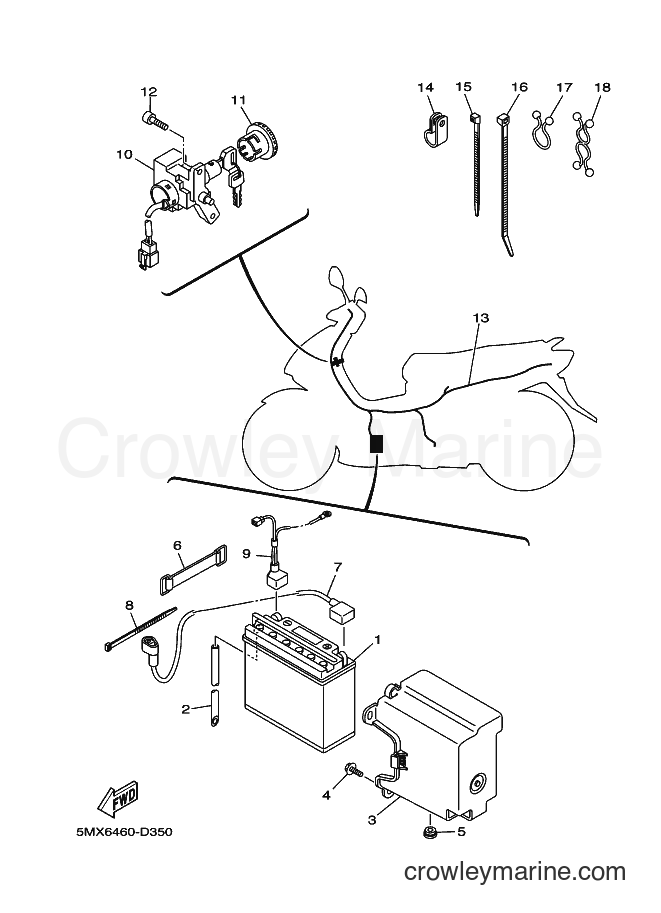

Yamaha Motors AT115C (5MX6) [010] - ELECTRICAL 1
Change View:
1
Required: 1
BATTERY ASSY (YUASA YB7B-B)
Price unavailable
2
Required: 1
HOSE
Price unavailable
3
Required: 1
BOX, BATTERY 1
Price unavailable
Bolt with Washer
4
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
5
Required: 1
GROMMET
Price unavailable
6
Required: 1
BAND, BATTERY
Price unavailable
7
Required: 1
WIRE, PLUS LEAD
Price unavailable
8
Required: 1
BAND, SWITCH CORD
Price unavailable
9
Required: 1
WIRE, MINUS LEAD
Price unavailable
10
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
11
Required: 1
CAP, SWITCH
Price unavailable
BOLT
12
Yamaha Motors
BOLT91317-06014-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
13
Required: 1
WIRE HARNESS ASSY
Price unavailable
Clamp
14
Yamaha Motors
Clamp90461-11099-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
Band
15
Yamaha Motors
Band1UA-82591-00-00
Required: 2
CLAMP
Supersedes: 90465-13152-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Clamp
16
Yamaha Motors
Clamp90464-70800-00
Required: 4
CLAMP
Cross Ship
Leaves in 2-5 days
$0.85
$0.72
You save $0.13
More details
Clamp
17
Yamaha Motors
Clamp90464-16801-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
18
Required: 1
CLAMP
Price unavailable
