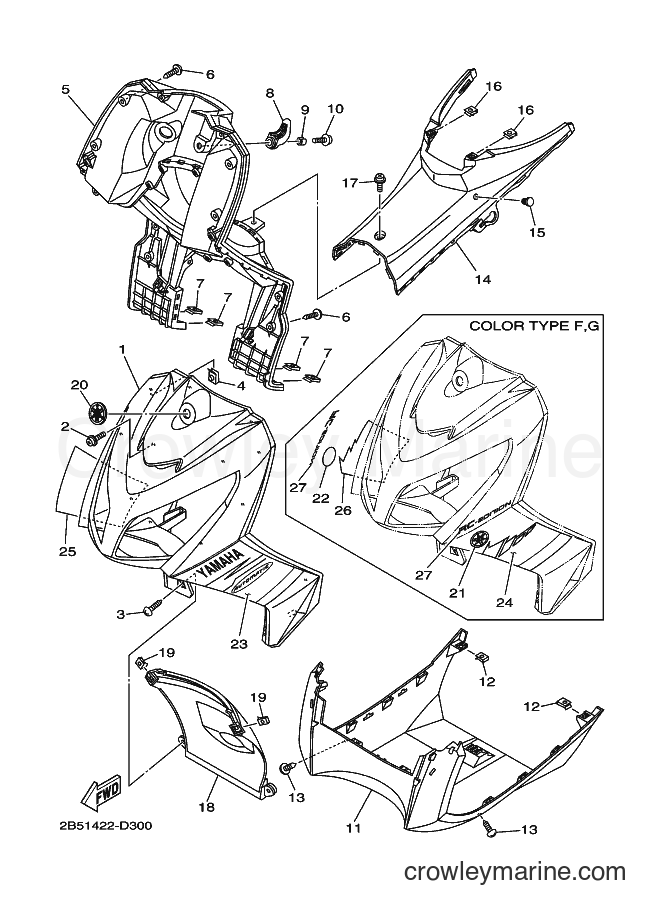

2005 Scooter AT115 - AT115 (2B51) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT115 (2B51) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
Screw With Washer
2
Yamaha Motors
Screw With Washer90159-06178-00
Required: 2
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Truss Screw
3
Yamaha Motors
Truss Screw97707-50014-00
Required: 4
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
4
Required: 13
NUT, SPRING
Price unavailable
5
Required: 1
LEG SHIELD ASSY
Price unavailable
Truss Screw
6
Yamaha Motors
Truss Screw97707-50014-00
Required: 10
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
7
Required: 6
NUT, SPRING
Price unavailable
8
Required: 1
HOOK 1
Price unavailable
9
Required: 1
COLLAR
Price unavailable
Screw with Washer
10
Yamaha Motors
Screw with Washer90159-06067-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
11
Required: 1
COVER, LOWER
Price unavailable
12
Required: 2
NUT, SPRING
Price unavailable
Truss Screw
13
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
14
Required: 1
COVER 2
Price unavailable
15
Required: 1
PLUG, BLIND
Price unavailable
16
Required: 2
NUT, SPRING
Price unavailable
17
Required: 1
SCREW, WITH WASHER
Price unavailable
18
Required: 1
FENDER, INNER
Price unavailable
19
Required: 2
NUT, SPRING
Price unavailable
20
Required: 1
EMBLEM 1
Price unavailable
23
Required: 1
GRAPHIC 1
Price unavailable
25
Required: 1
GRAPHIC 2
Price unavailable
27
Required: 2
EMBLEM
Price unavailable
27
Required: 2
EMBLEM
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
