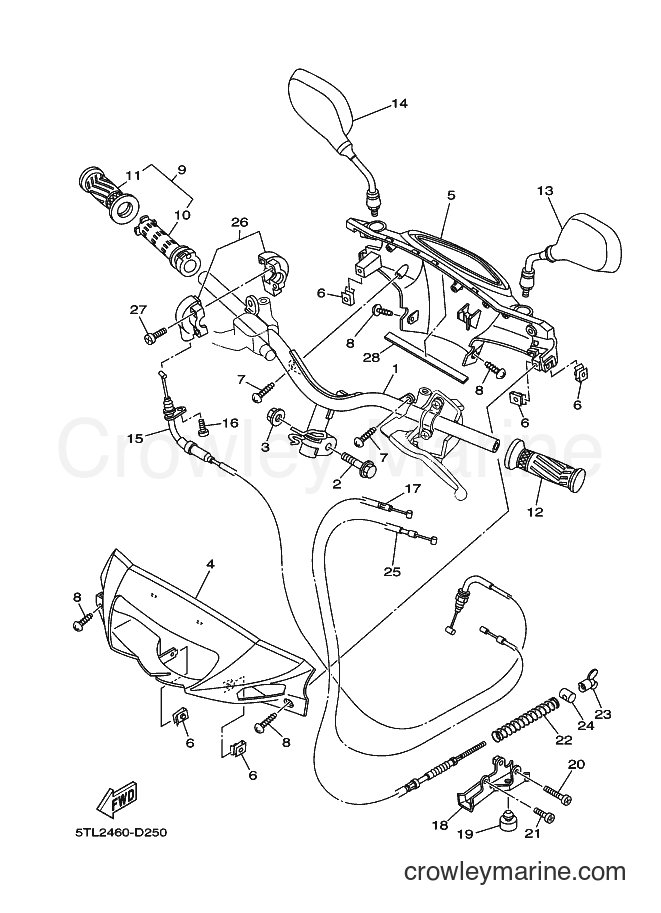

2005 Scooter AL115C - AL115C (5TL2) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL115C (5TL2) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE COMP.
Price unavailable
Washer Based Bolt
2
Yamaha Motors
Washer Based Bolt90105-10036-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
3
Required: 1
NUT, SELF-LOCKING
Price unavailable
4
Required: 1
COVER, HANDLEBAR UPPER 1
Price unavailable
5
Required: 1
COVER, HANDLEBAR UPPER 2
Price unavailable
Truss Screw
8
Yamaha Motors
Truss Screw97707-50012-00
Required: 4
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
9
Required: 1
GRIP ASSY
Price unavailable
10
Required: 1
. TUBE, THROTTLE GUIDE
Price unavailable
11
Required: 1
. GRIP (RIGHT)
Price unavailable
12
Required: 1
GRIP
Price unavailable
13
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
14
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
15
Required: 1
CABLE, THROTTLE 1
Price unavailable
17
Required: 1
CABLE, BRAKE
Price unavailable
18
Required: 1
HOLDER, WIRE
Price unavailable
Fuel Cam Shaft Stopper
19
Yamaha Motors
Fuel Cam Shaft Stopper4YY-F7114-00-00
Required: 1
STOPPER, MAIN STAND
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Pan Screw
20
Yamaha Motors
Pan Screw98507-06040-00
Required: 1
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.22
$2.74
You save $0.48
More details
22
Required: 1
SPRING, COMPRESSION
Price unavailable
25
Required: 1
CABLE, STARTER 1
Price unavailable
26
Required: 1
CABLE CONNECTOR CAP ASSY
Price unavailable
Pan Head Screw
27
Yamaha Motors
Pan Head Screw98507-05025-00
Required: 2
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
28
Required: 1
DAMPER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
